The 3x 200 kW permanent magnet electric motors can be powered by a battery pack(s), if required in combination with AC power socket, generator set or future energy sources. The maximum deliverable hydraulic flow can go up to 1250 l/min depending upon the application.

12 ton
Dimensions (L x W x H) 4.55 x 1.81 x 2.70 m
Electric power input
Max. Input 1 - 500 VAC (240 A) 200 kVA
Max. Input 2 - 0 / 750 VDC (400 A) 240 kW
Max. Input 3 - 0 / 750 VDC (400 A) 240 kW
Hydraulic power unit 3x 200 kW
Capacity hydraulic oil tank 2.000 liter
Main functions Weight
Max. flow main output 1 0 - 800 l/min
Max. flow main output 2 0 - 450 l/min
Auxiliary functions
Max. flow aux. output 1 (max. 35 bar) 35 l/min
Max. flow aux. output 2 (max. 40 bar) 118 l/min
Control box (or via machine cabin) via Can-bus communication

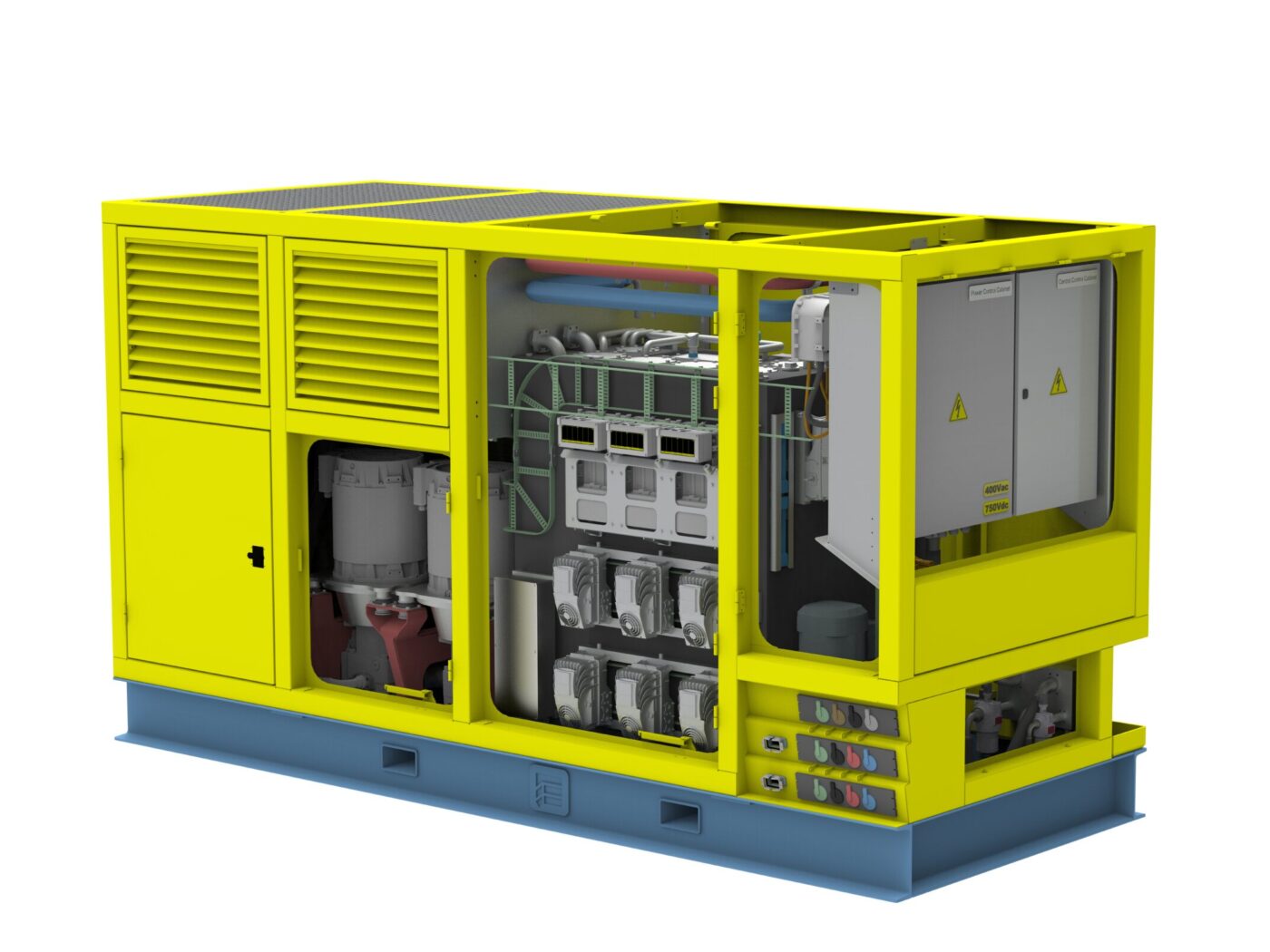

Additional information FOR THE FUNDEX FPS803

  • zero emission electric/hydraulic power pack
  • perfect solution for retrofit
  • two separate hydraulic outputs
  • very quiet during operation
  • easy to adapt to a different application
  • can be powered by different power sources depending upon availability
  • power control by energy management system
  • Energy & Emission dashboard in MYRIX for fleet management
