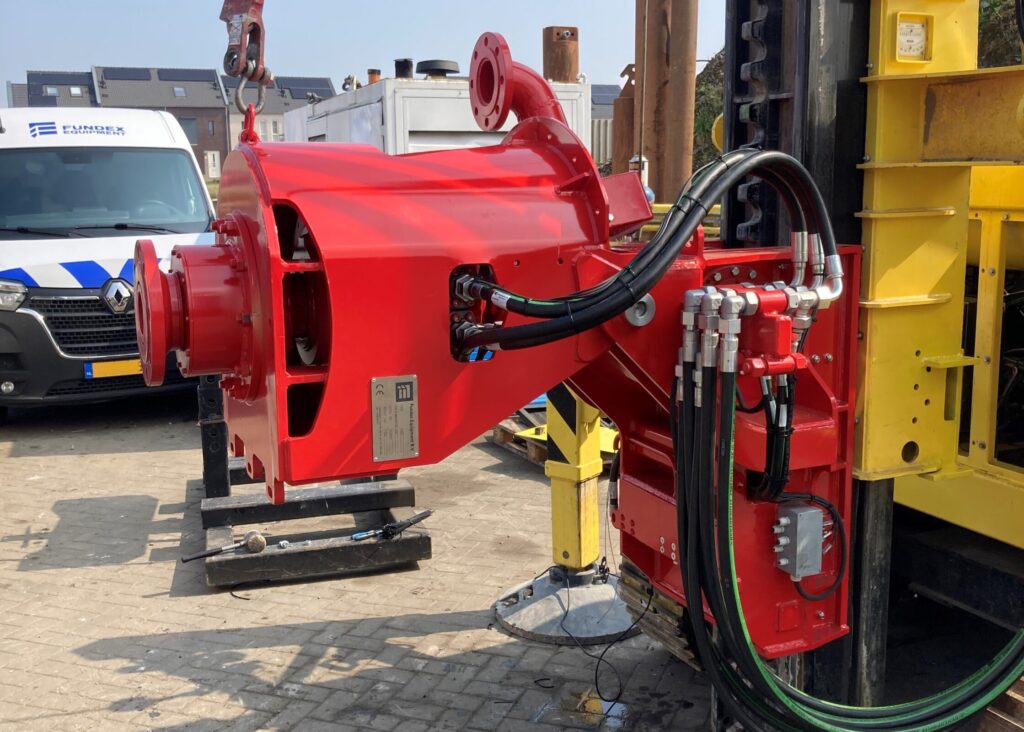

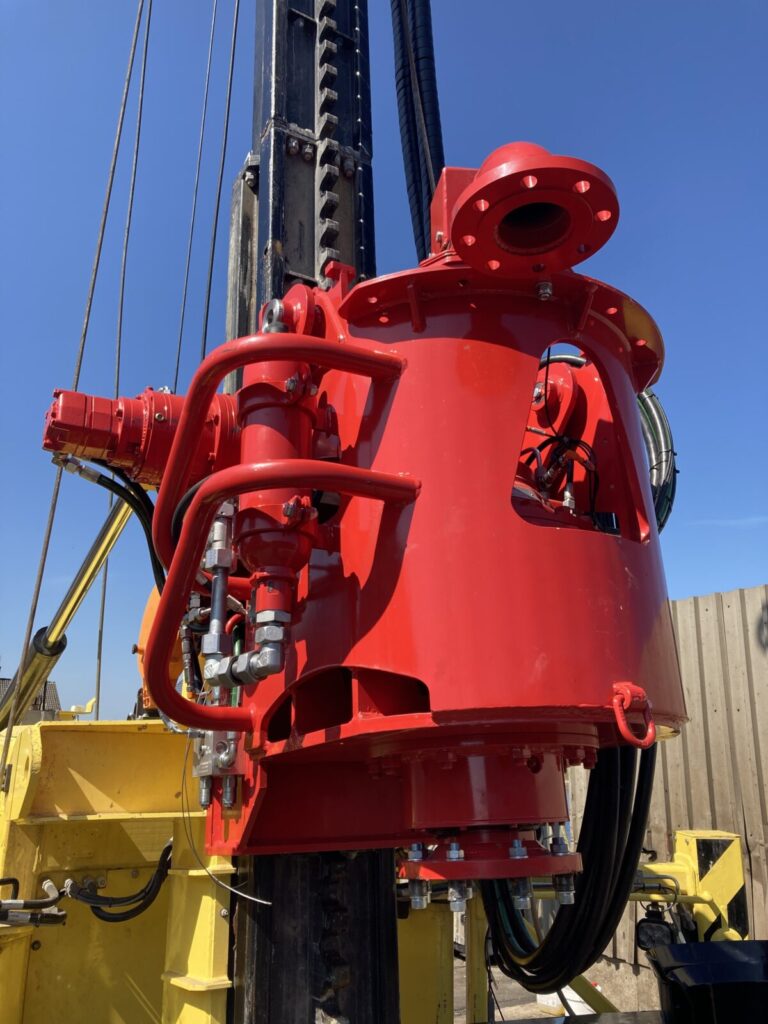

COMPACT ROTARY HEAD CDE4

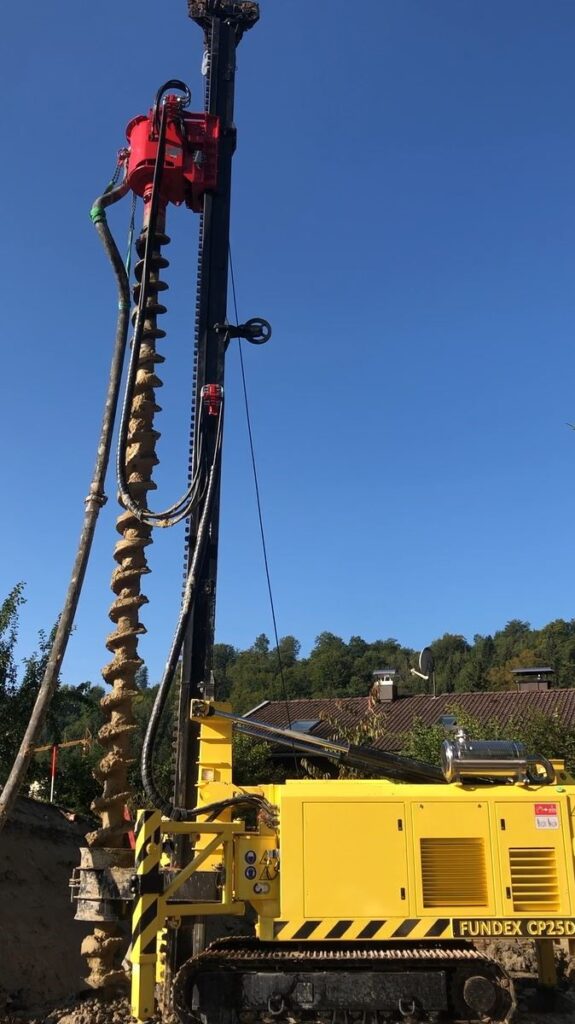

For pre-drilling or installing CFA piles with a compact rig the CDE4 is the perfect rotary head. Together with a special pull-up/pull-down frame it’s easy to connect the auger or casing on ground level in the rotary.
Also soil displacement and grout injection piles can be installed with the robust single hydro motor driven rotary.
Specifications of the FUNDEX CDE4 compact rotary head
| Max. torque | 40 kNm |
|---|---|
| Gear shifting | automatic or manual |
| Max. oil flow | 200 l/min |
| Max. torque / rotation speed (i.c.w. CP25E) | 40 kNm / 11 rpm |
| 30 kNm / 15 rpm | |
| 25 kNm / 18 rpm | |
| 20 kNm / 22 rpm | |
| 10 kNm / 22 rpm | |
| Max. pull-up | 6 ton |
| Max. pull-down | 6 ton |
| Weight | 1.300 kg |
applications suitable for the FUNDEX CDE4 compact rotary head
