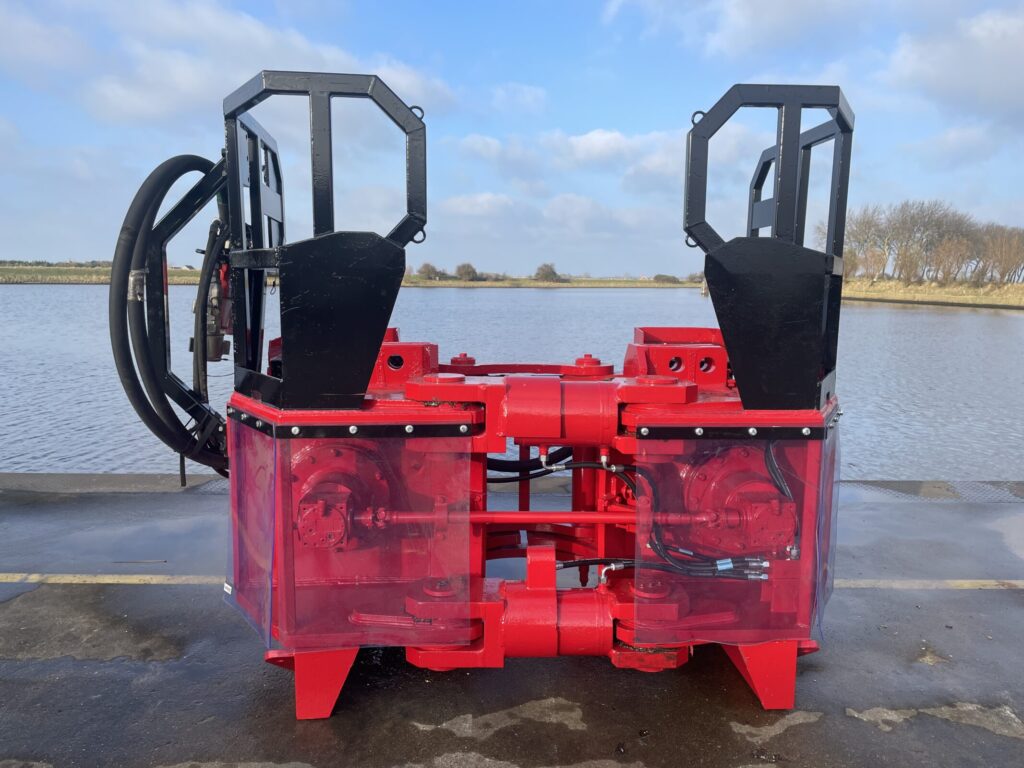

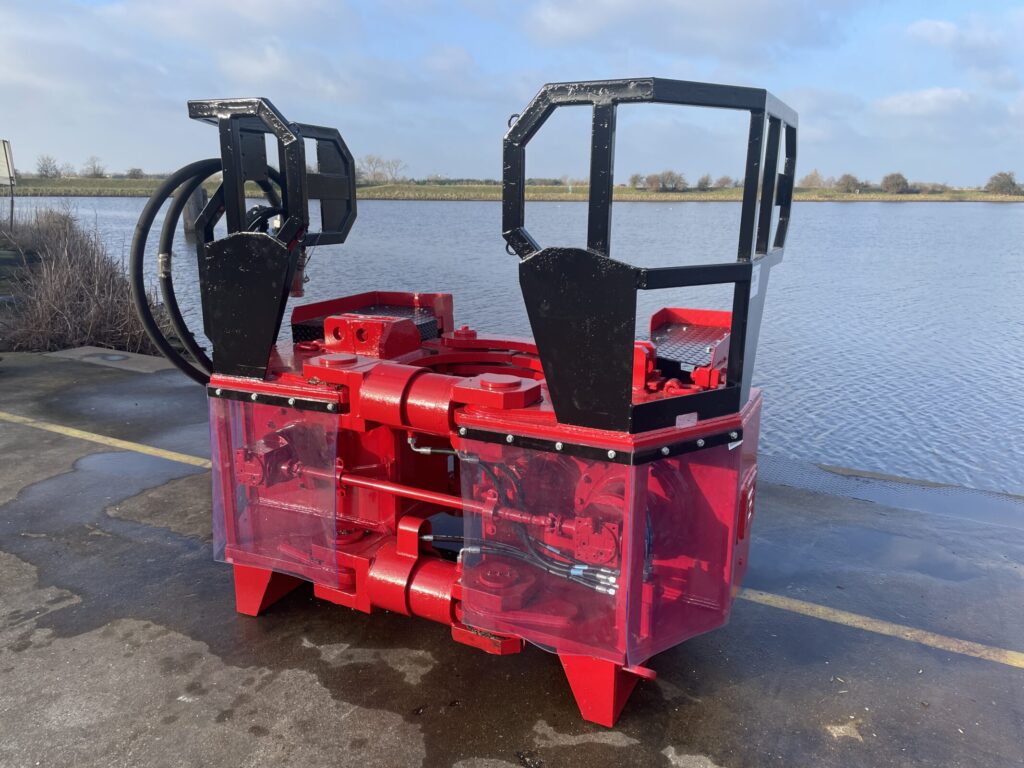

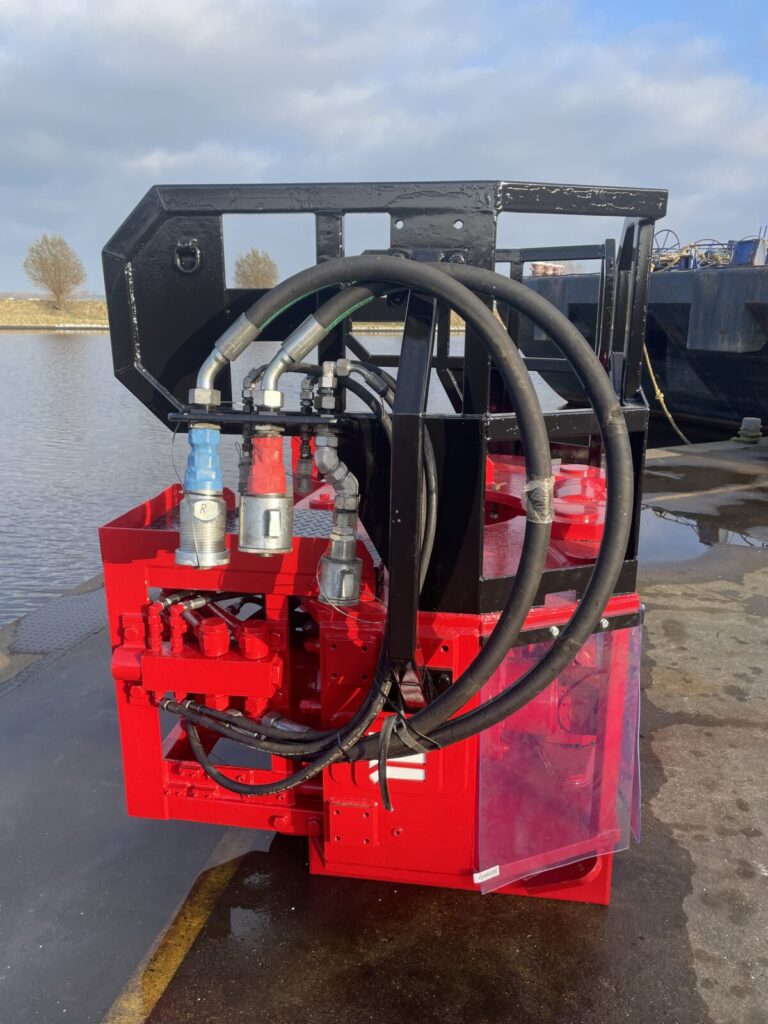

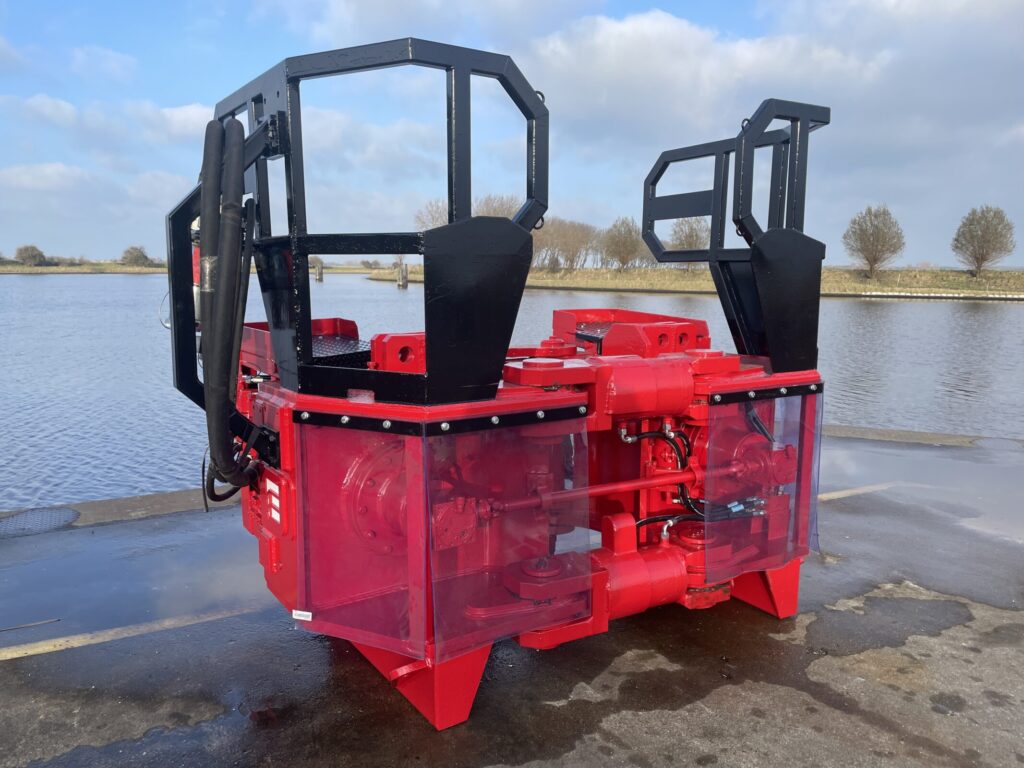

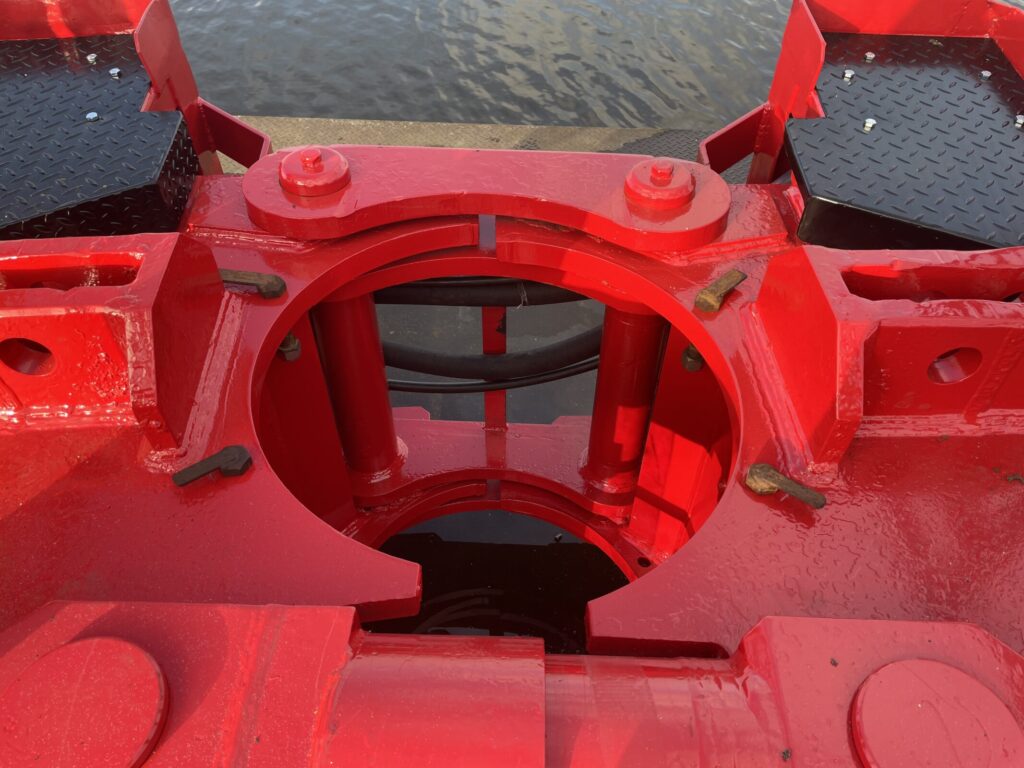

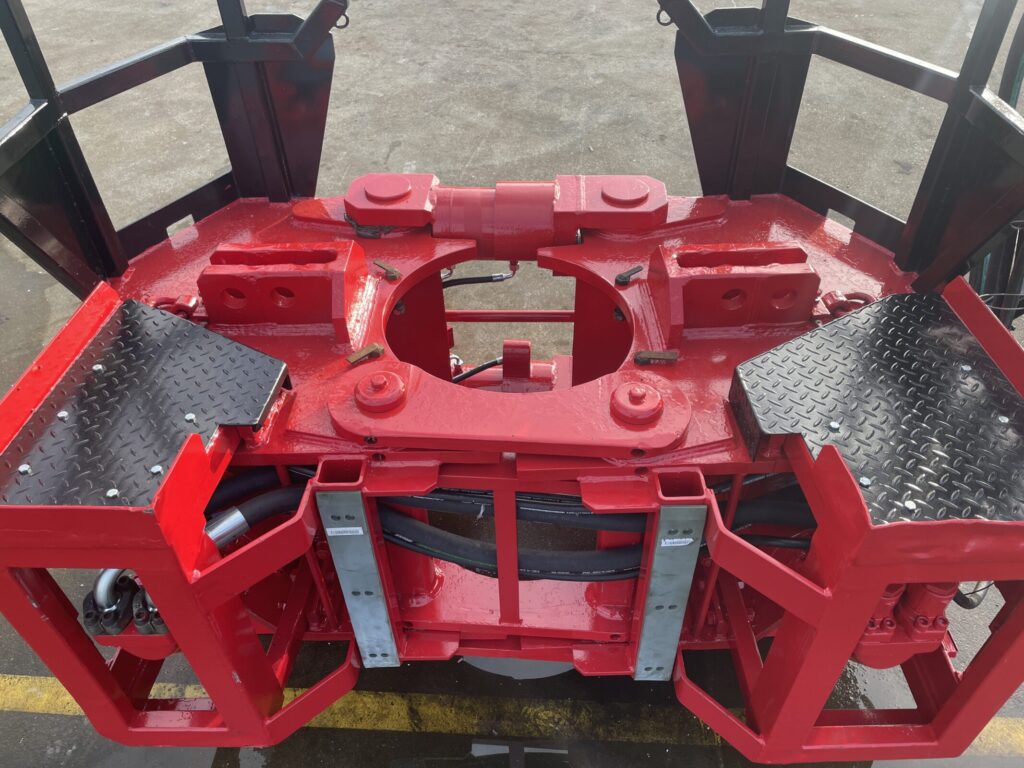

Specifications of the new fundex ring vibrator FVE50HD

Ring vibrator FVE50HD
Serial number 21.35.50
Year of manufacture 2021
Eccentric weight 60 kgm
Min. tube diamter 324 mm
Max. tube diameter 609 mm
Max. pull 50 ton (optional 100 ton)
Max. clamping pressure 320 bar
Max. oil flow 480 l/min
Weight 6.500 kg
Technical condition new

applications suitable for the new ring vibrator FVE50HD

Suitable rigs for the new fundex ring vibrator FVE50HD
