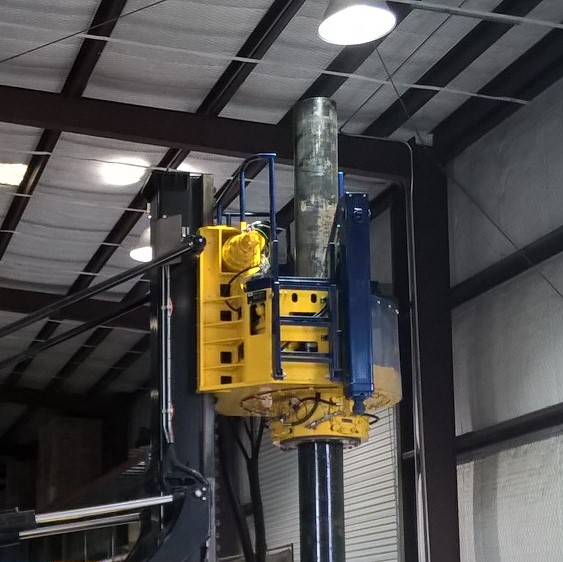

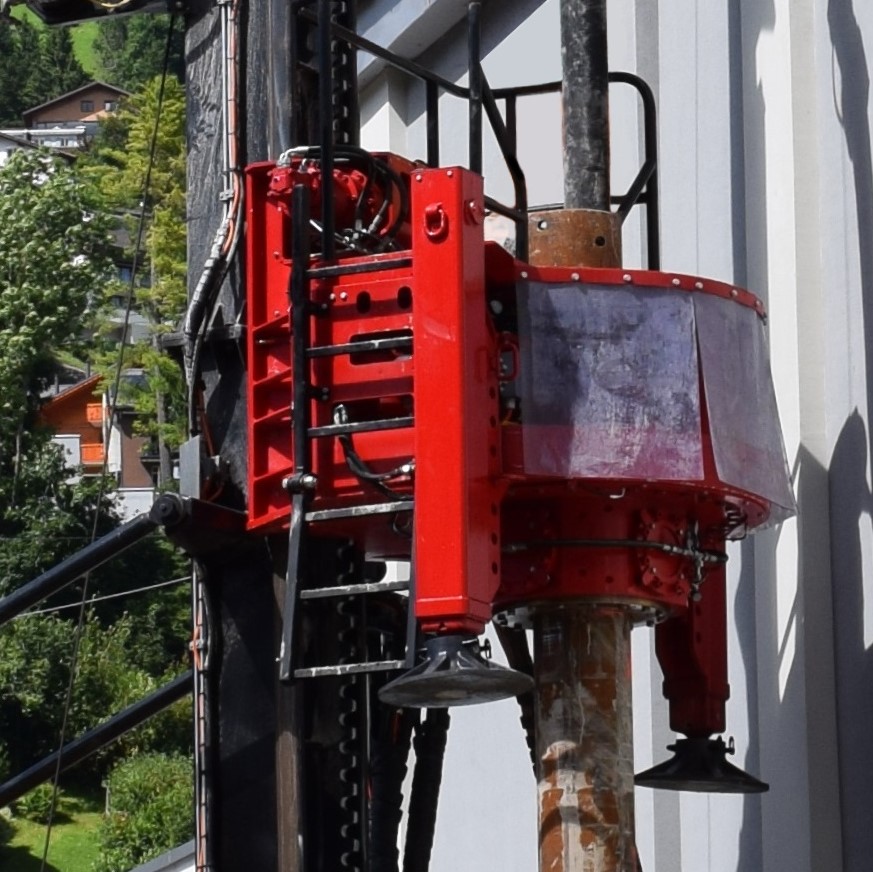

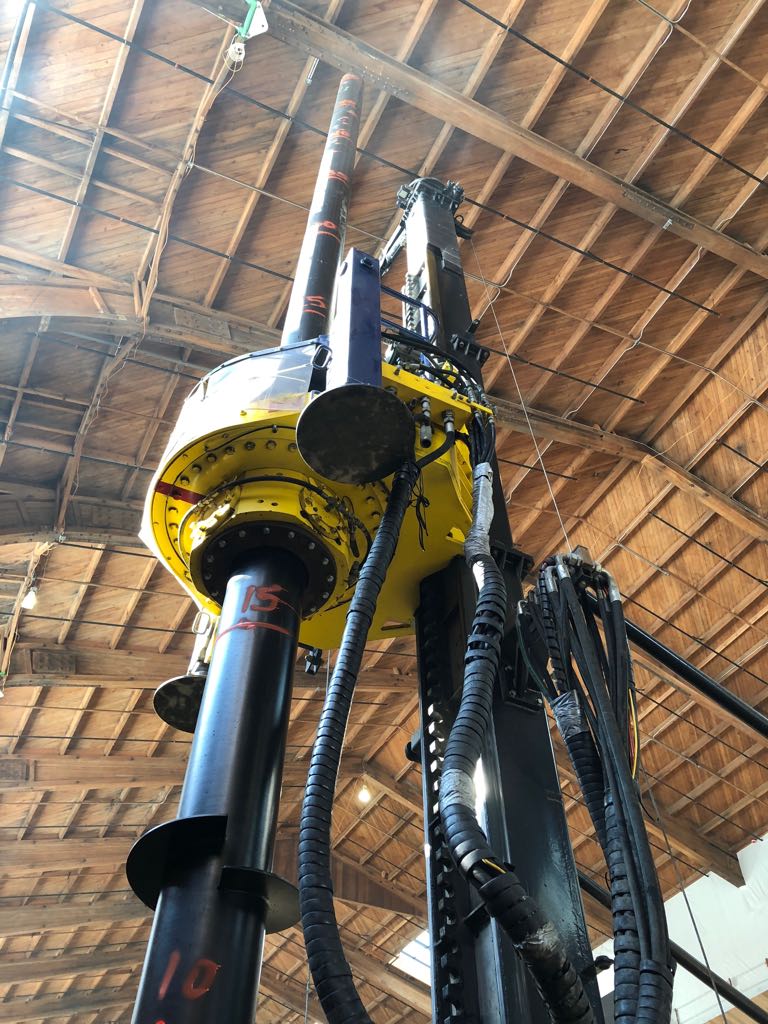

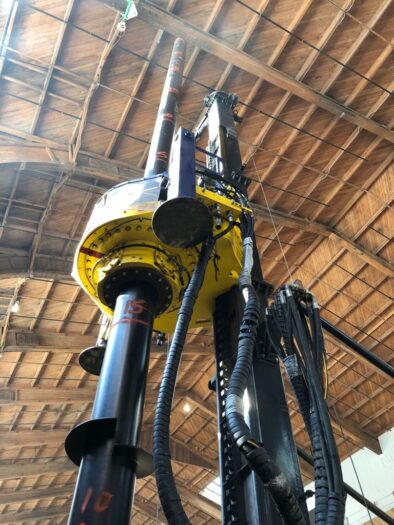

COMPACT ROTARY HEAD CDE20
Without a doubt the CDE20 is the strongest compact rotary head with a large open center on the market and perfect to install cast in situ full displacement piles. Together with a CCS clamping system and a 44 ton total extraction force the casing can be extracted after concreting.

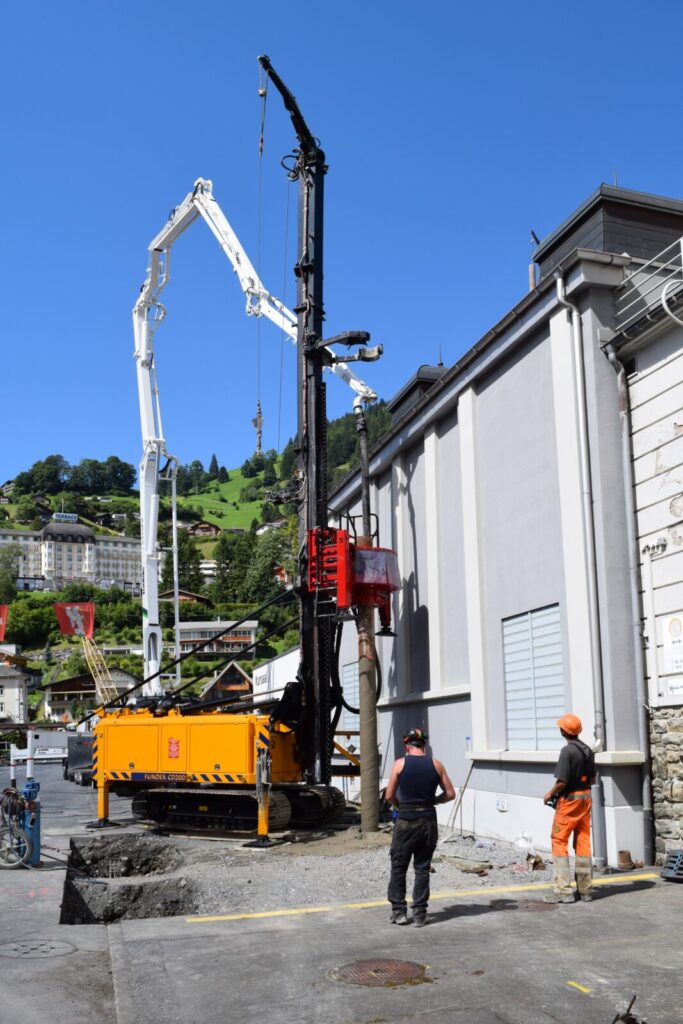

A rack and pinion system creates 14 ton pull down force in combination with a FUNDEX CD20D rig.
Specifications of the FUNDEX CDE20 compact rotary head
| Max. torque | 200 kNm |
|---|---|
| Diameter casing | 273 - 457 mm |
| Gear shifting | automatic or manual |
| Max. oil flow | 280 l/min |
| 1st gear | 200 kNm / 6 rpm |
| 2nd gear | 150 kNm / 8 rpm |
| 3rd gear | 100 kNm / 13 rpm |
| 4th gear | 32 kNm / 21 rpm |
| Max. pull-up | 14 ton |
| Max. pull-down | 14 ton |
| Weight | 4.4 ton |
applications suitable for the FUNDEX CDE20 compact rotary head
