Specifications of the FUNDEX CD20D

  • 15.3 mtr Max. leader length
  • 17 mtr Max. drilling depth
  • 457 mm Max. drilling diameter
  • 200 kNm Max. drilling torque
  • 14 + 30 T Max. pull-up force
  • 14 T Max. pull-down force
  • 160 kW Engine
  • 24.5 T Transport weight
Max. leader length 15.3 mtr
Max. drilling depth 17 mtr
Max. drilling diameter 457 mm
Max. drilling torque 200 kNm
Max. pull-up force 14 + 30 T
Max. pull-down force 14 T
Engine 160 kW
Transport weight 24.5 T

ADVANTAGES OF THE FUNDEX CD20D

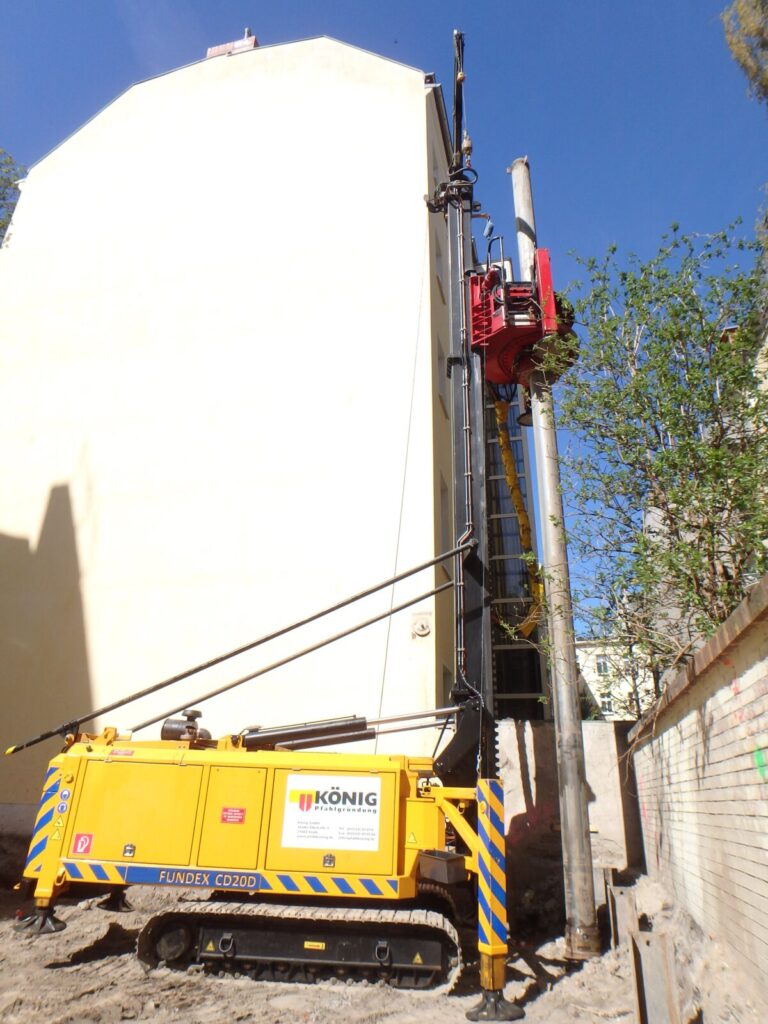

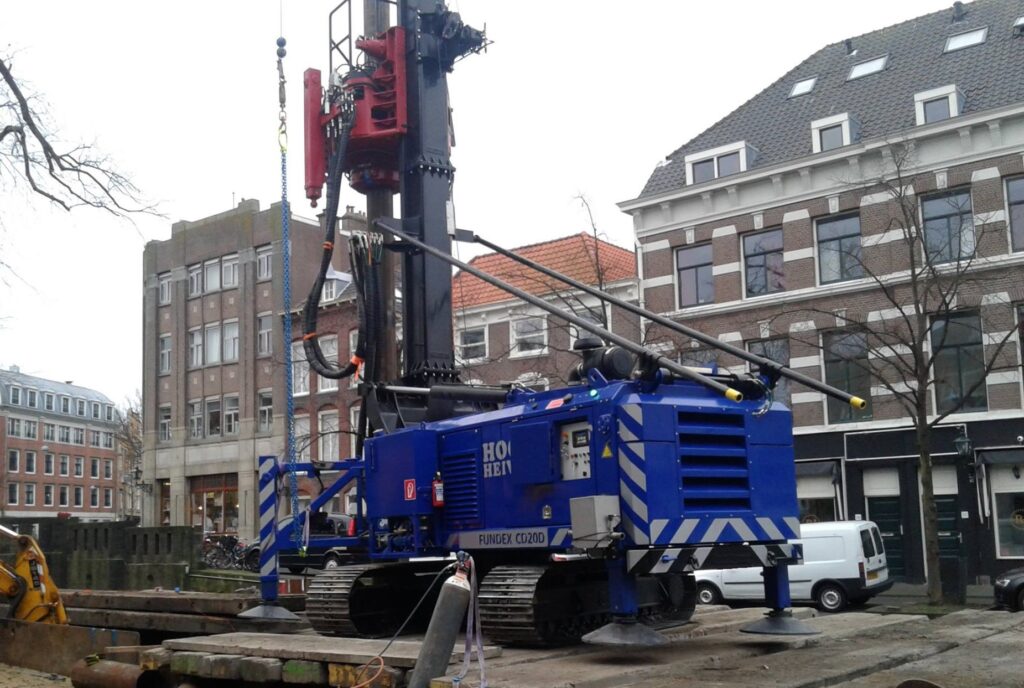

  • suitable for restricted access sites
  • modular leader set-up enables optimum leader length for every job site
  • operated with a remote control which gives the operator an optimum view of the working process

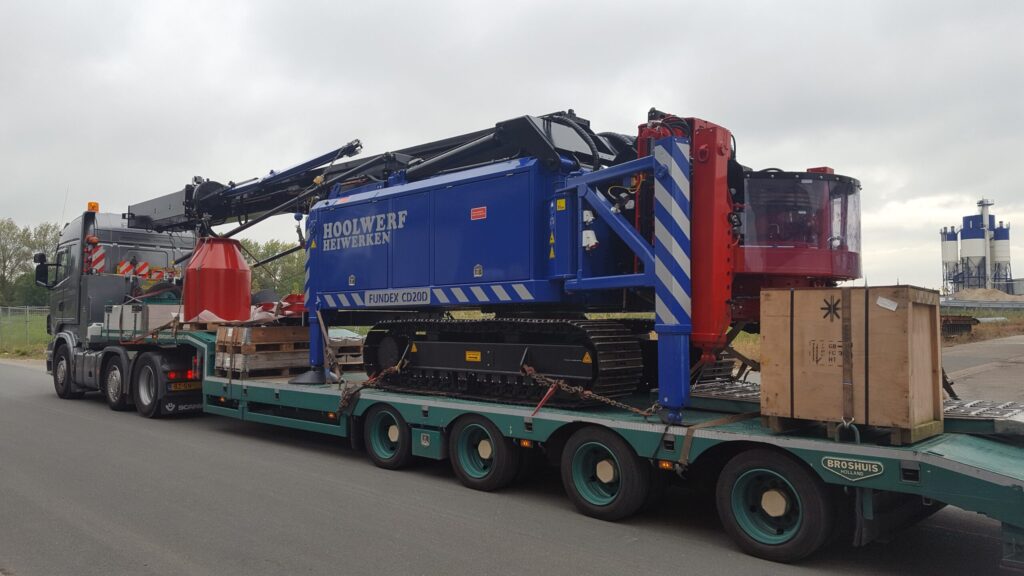

  • rotary head stays on the machine during transport
  • machine can be equipped with a 120kNm, 160kNm or 200kNm rotary head

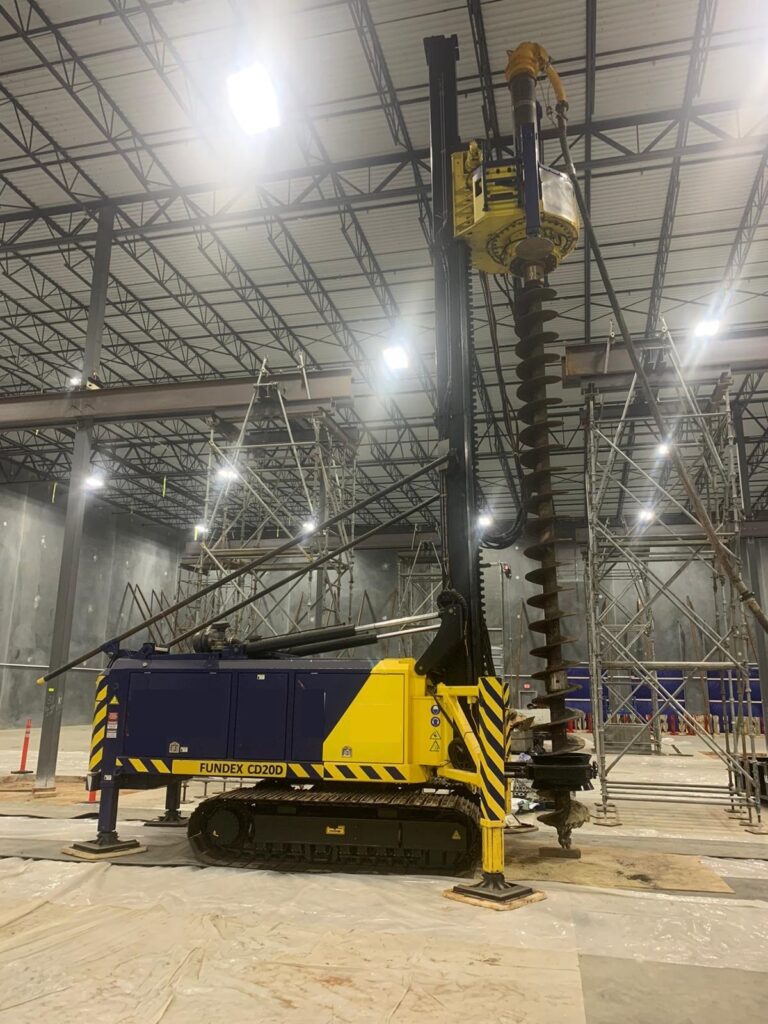

  • broad scope of pile techniques including CFA, soil displacement and pile driving
  • extensive data acquisition system available with possibility to MYRIX access
