The design is based on the conventional CD20 version, with the ability to switch to a zero-emission drive system and the flexibility of using a conventional generator power grid or alternative power sources, subject to availability. Despite the compact design of the machine, it is very powerful with high stability, partly thanks to the outriggers all round.
Specifications of the FUNDEX CD20E
15.3 mtrMax. leader length
17 mtrMax. drilling depth
457 mmMax. drilling diameter
200 kNmMax. drilling torque
14 + 30 TMax. pull-up force
14 TMax. pull-down force
160 kWEngine
24.5 TTransport weight
Max. leader length
15.3 mtr
Max. drilling depth
17 mtr
Max. drilling diameter
457 mm
Max. drilling torque
200 kNm
Max. pull-up force
14 + 30 T
Max. pull-down force
14 T
Engine
160 kW
Transport weight
24.5 T
ADVANTAGES OF THE FUNDEX CD20E
zero-emission machine suitable for various power sources
very quiet during operation
suitable for restricted access sites;

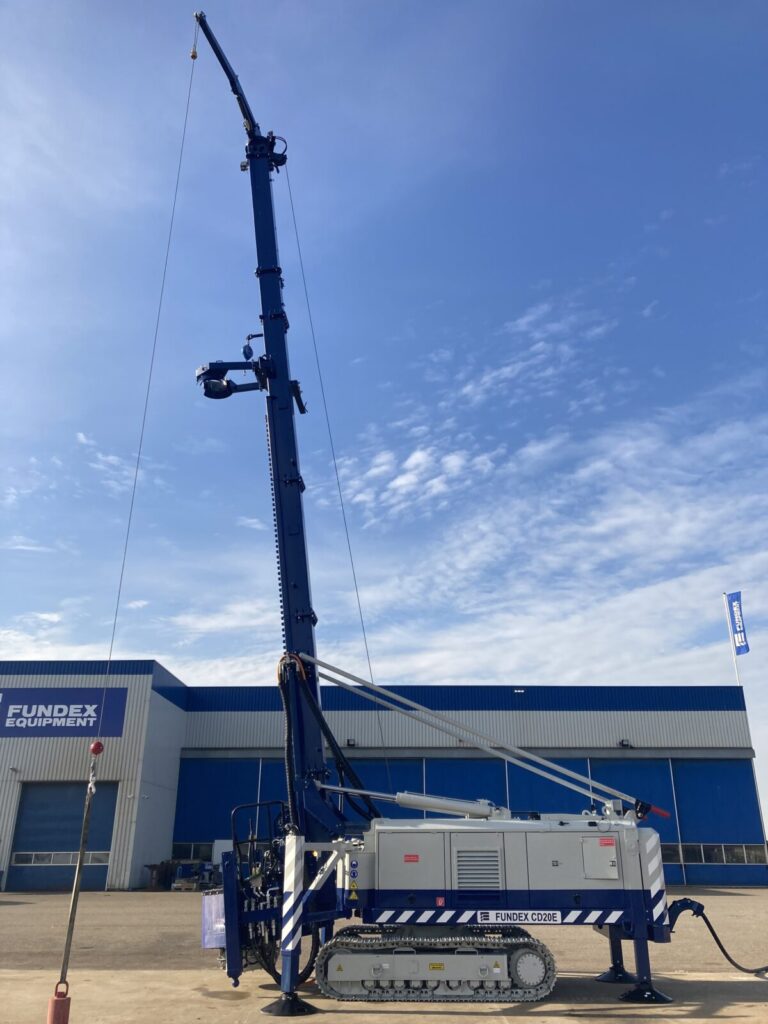

modular leader set-up for working in areas with limited height
remote controlled for optimum view of the working process;

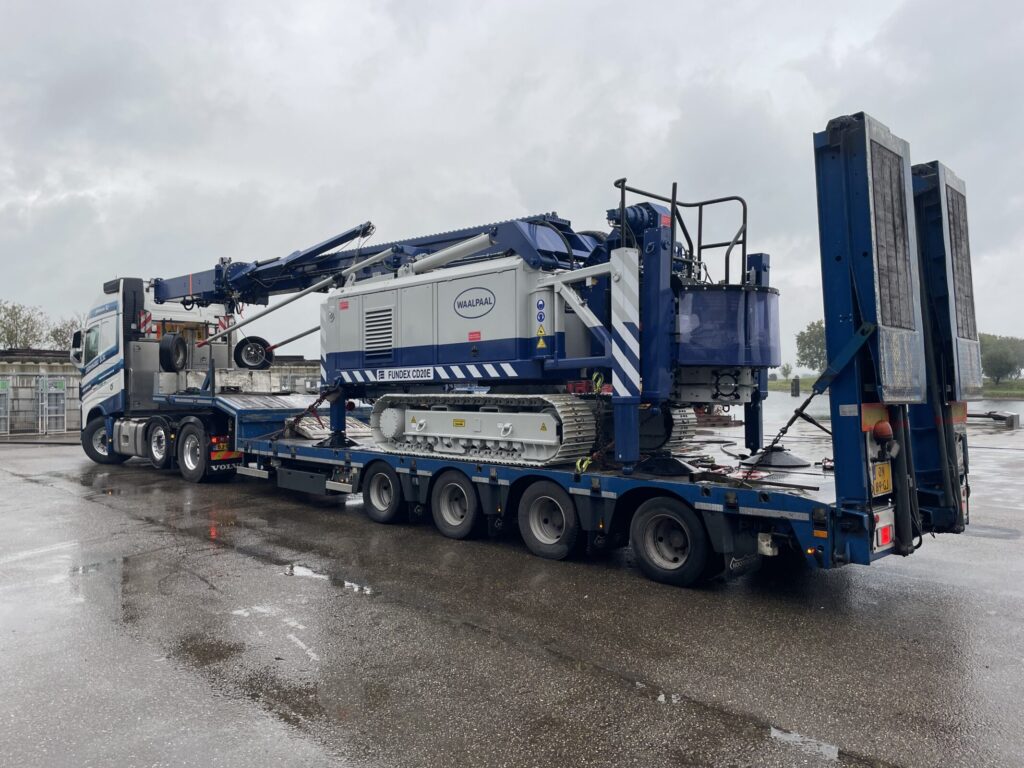

rotary head stays on the machine during transport

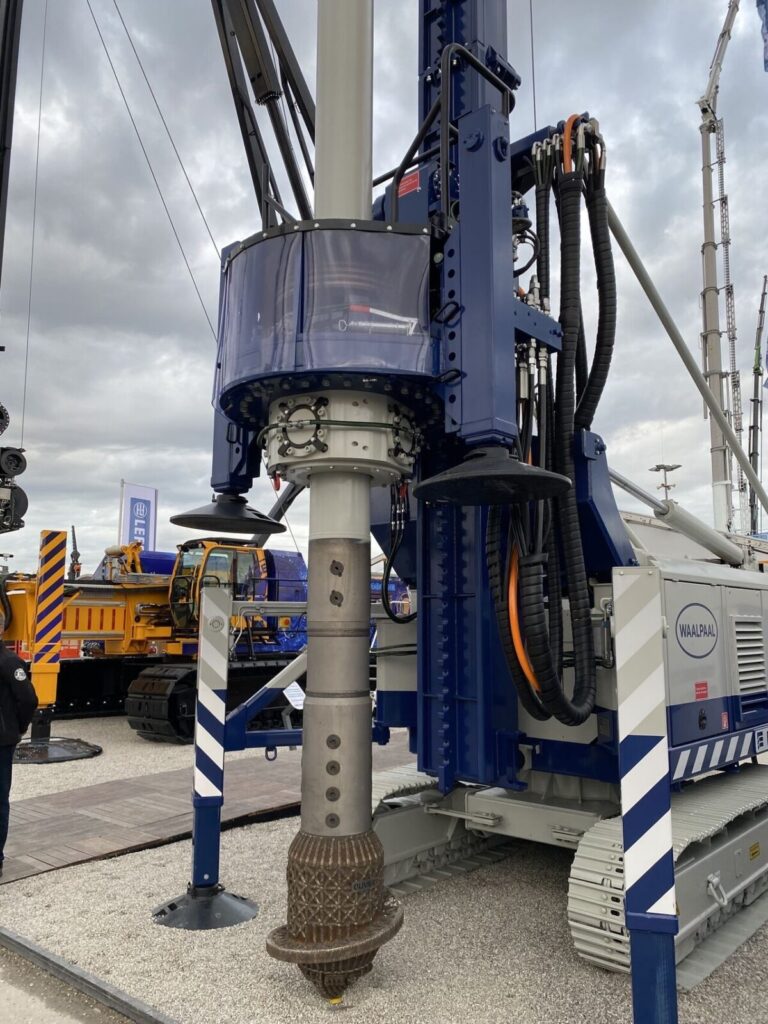

machine can be equipped with a 200 kNm rotary head (optional 120 or 160 kNm)
Energy & Emission dashboard in MYRIX for fleet management
