Specifications of the FUNDEX TTD50

  • 15.3 mtr Max. leader length
  • 23 mtr Max. drilling depth
  • 711 mm Max. drilling diameter
  • 500 kNm Max. drilling torque
  • 30 + 40 T Max. pull-up force
  • 30 T Max. pull-down force
  • 405 kW Engine
  • 64 T Transport weight
Max. leader length 15.3 mtr
Max. drilling depth 23 mtr
Max. drilling diameter 711 mm
Max. drilling torque 500 kNm
Max. pull-up force 30 + 40 T
Max. pull-down force 30 T
Engine 405 kW
Transport weight 64 T


  • limited headroom possibilities by modular leader set­up
  • optimum view on work area via remote control operation
  • broad scope of pile techniques including soil displacement and CFA drilling
  • rake positions forwards, backwards and sidewards (optional)

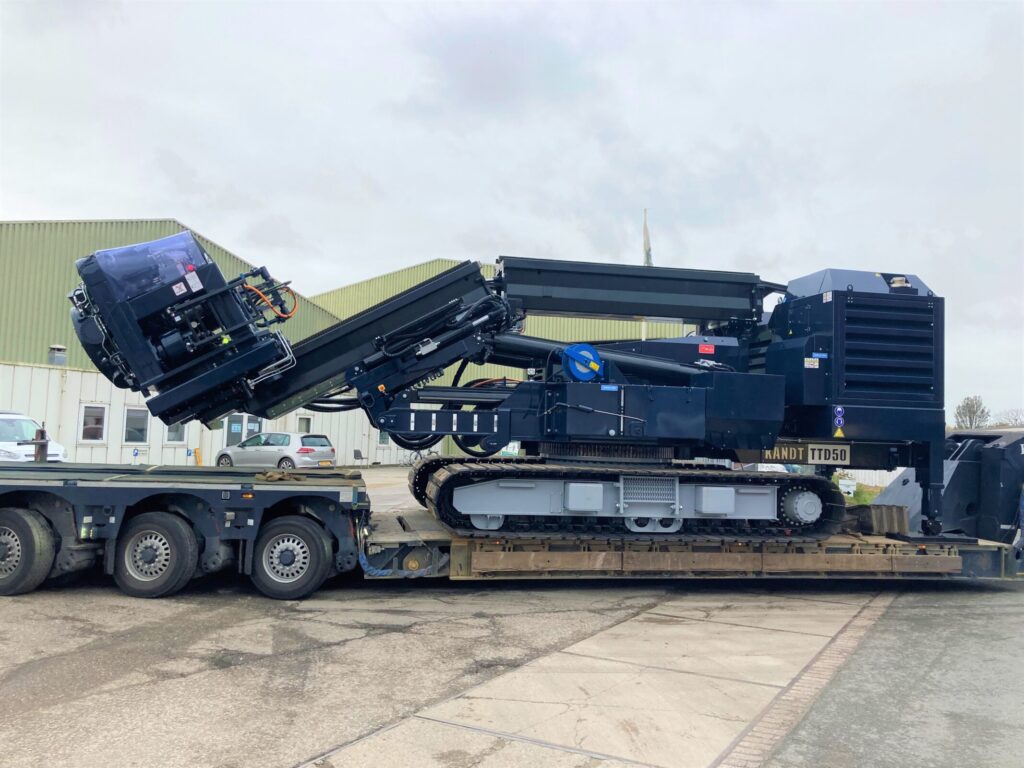

  • rapidly converted from transport to working position
  • quickly generated pile reports by data acquisition system
  • higher efficiency and uptime with the use of MYRIX online portal

applications suitable for the FUNDEX TTD50
