pre-owned FUNDEX F12LH

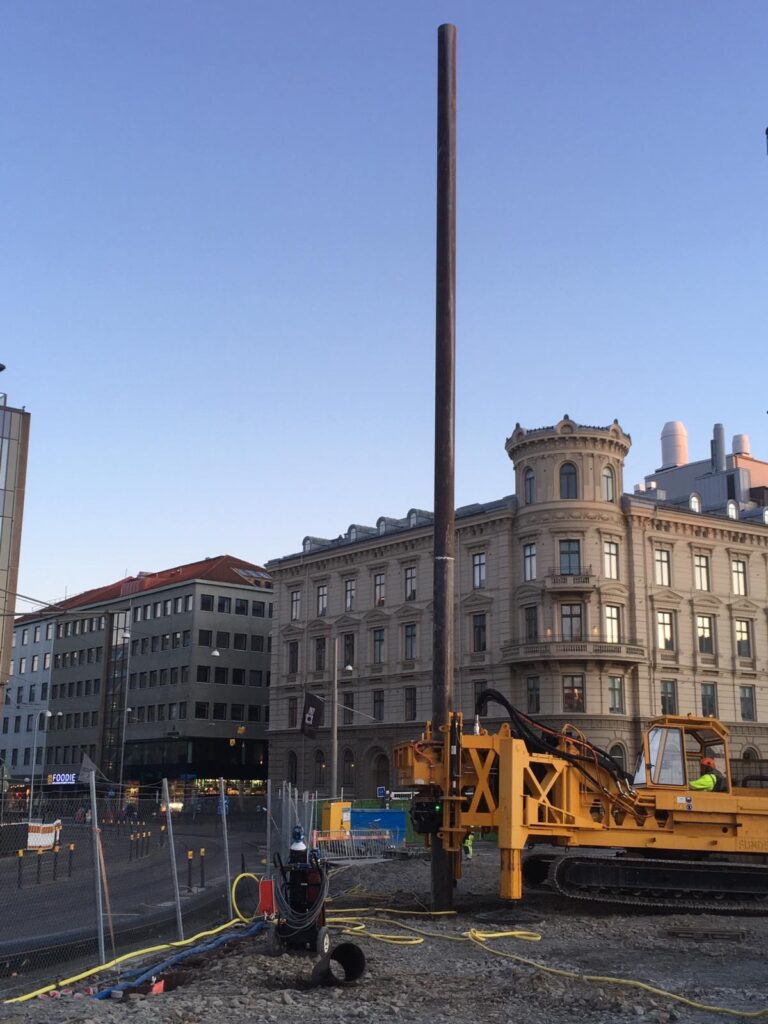

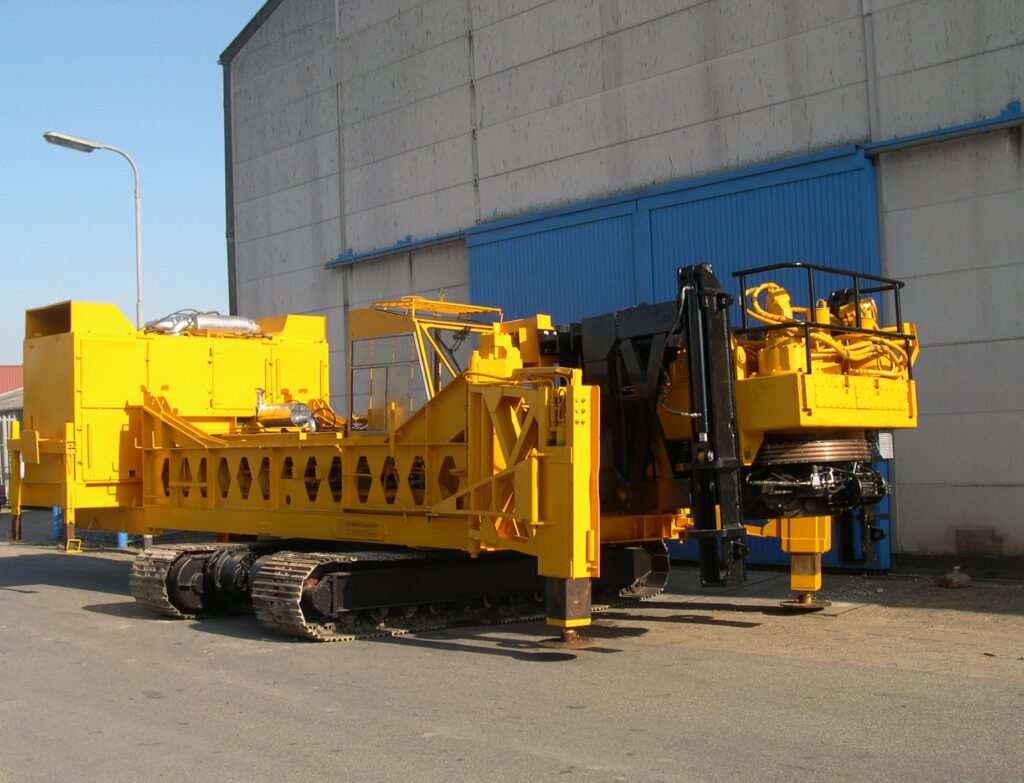

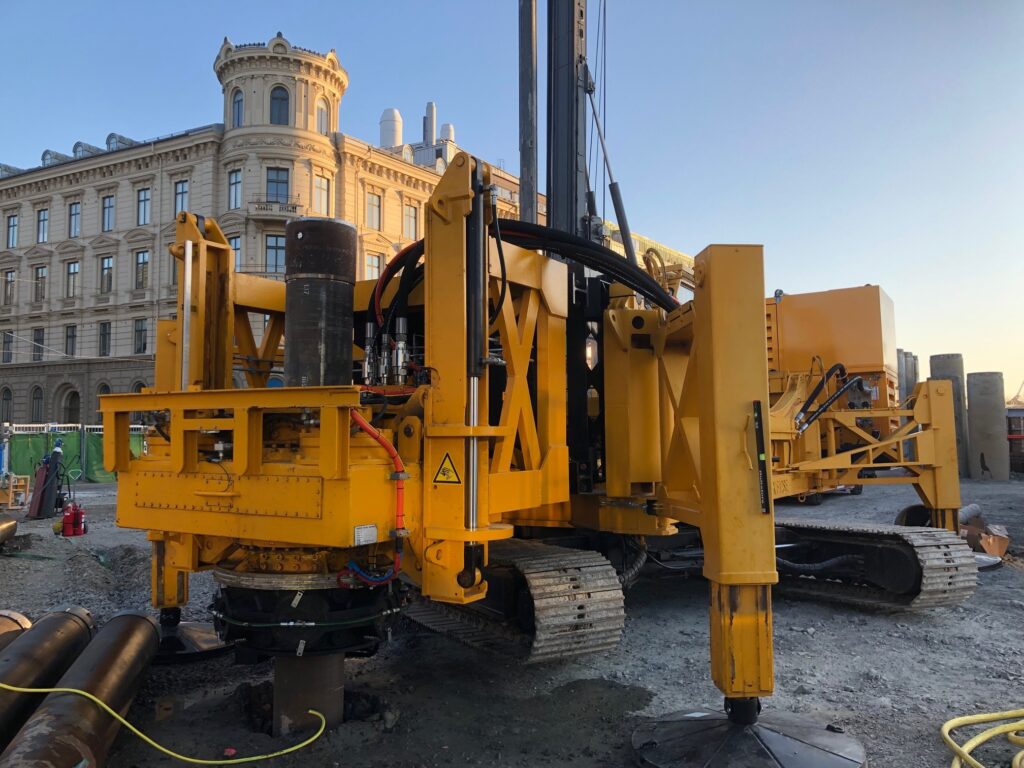

The used FUNDEX F12LH (Low Headroom) is a compact and powerful model in the range of Fundex Equipment foundation rigs. This rig is completely overhauled in 2014 and in good working condition.
Specifications of the USED FUNDEX F12LH
| Rig | FUNDEX F12LH |
|---|---|
| Serial number | 07.85.12SE |
| Year of manufacture | 2007 - completely overhauled in 2014 |
| Engine | Deutz Engine Stage II |
| Pull up force | 15 ton |
| Pull down force | 15 ton |
| Working length | 10.510 mm |

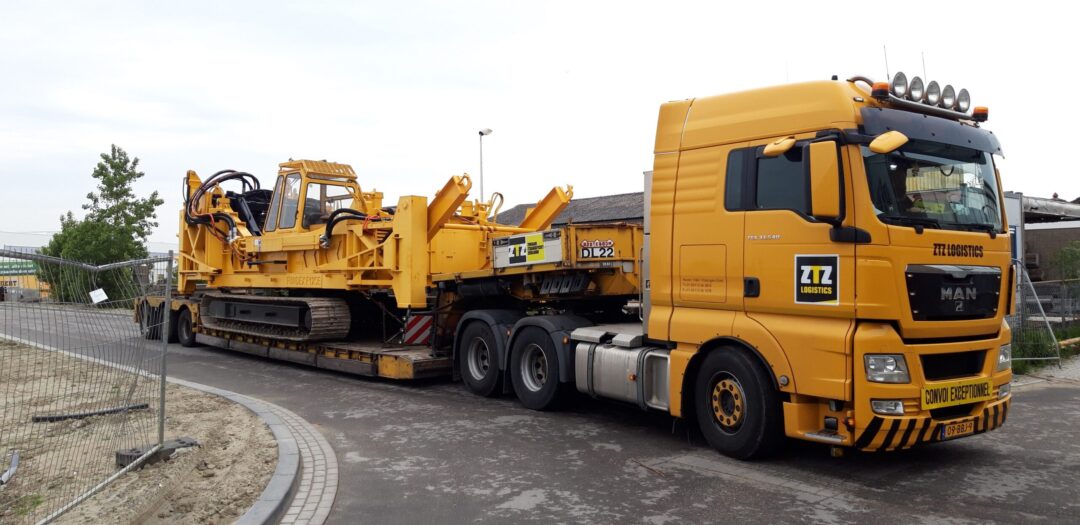

| Transport length | 9.770 mm |
| Working width | 5.000 mm (with extended tracks, excluding supports) |
| Transport width | 3.500 mm |
| Operational weight approx. | 47 ton |
| Transport weight approx. | 25 ton |
| Supports | 2 front and 2 rear supports |
| Operation | cabin controlled |
| Rotary head | Type 50 (sn. 87.20.50) |
| Year of manufacture | 1987 (completely overhauled in 2016) |
| Weight | 12 ton |
| Max. torque | 400 kNm |
| Max. rotation 1st gear | 8 rpm with 800 l/min |
| Max. rotation 2nd gear | 17 rpm with 800 l/min |
| Cylinder stroke | 1.000 mm |
| Min. casing diameter casing clamp | 324 mm |
| Max. casing diameter casing clamp | 457 mm |
| Max. casing weight | 3.5 ton |
| Clamp control | electric / hydraulic (cabin controlled) |
| Power pack | on request |
ADVANTAGES OF THE USED FUNDEX F12LH
- in good working condition
- beneficial in areas where space and height are limited
- 400 kNm torque
