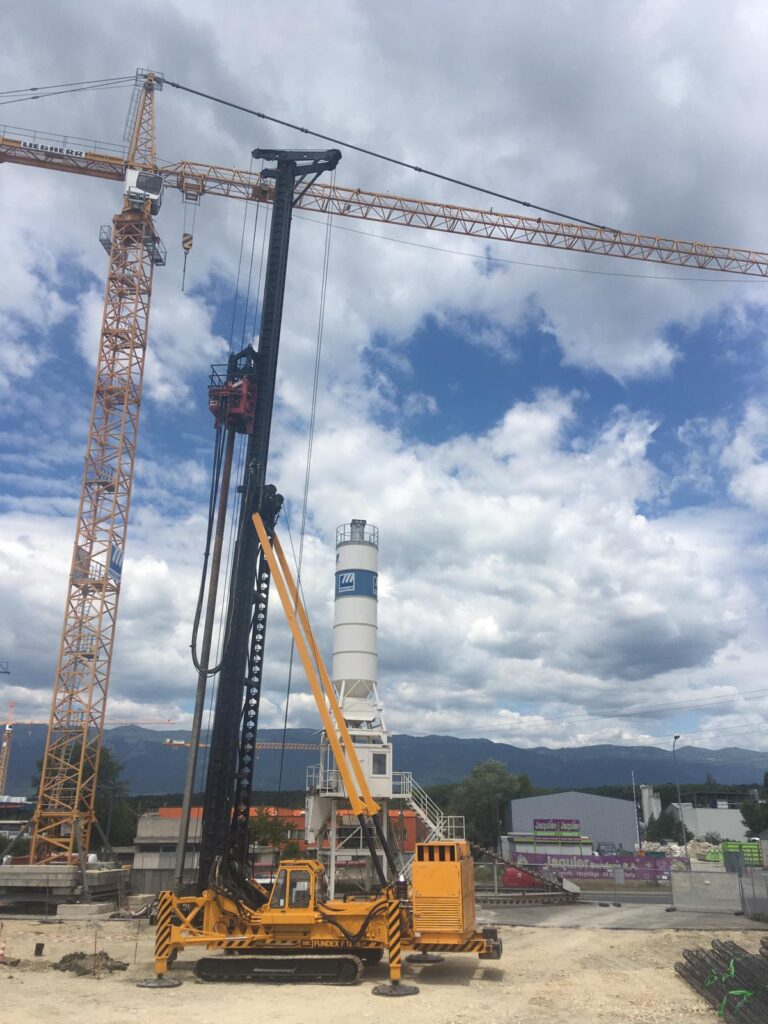

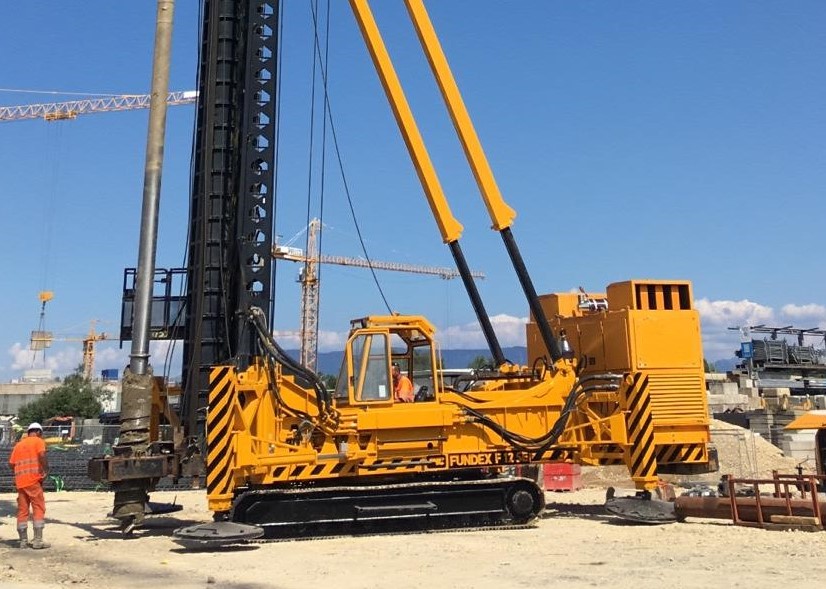

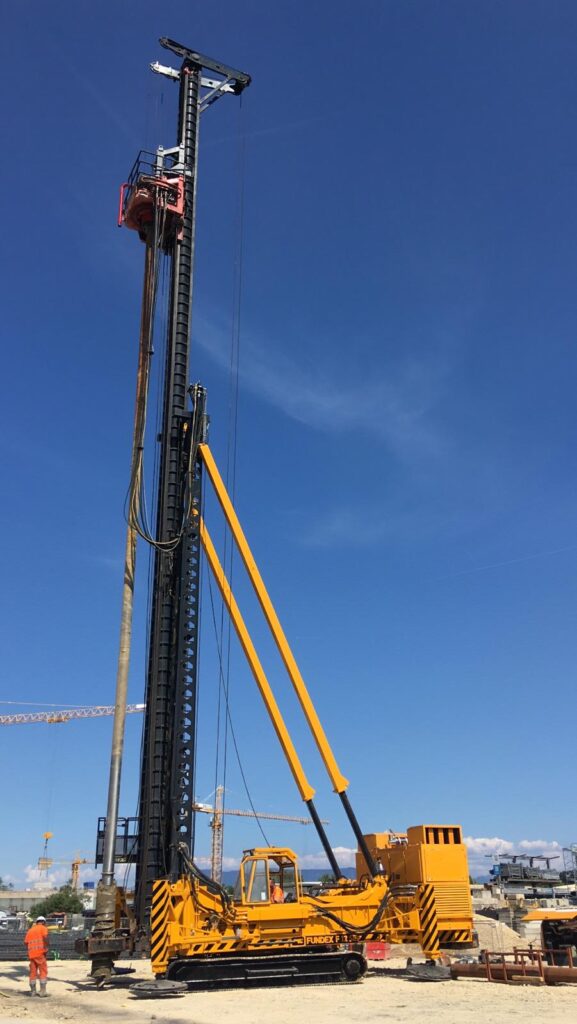

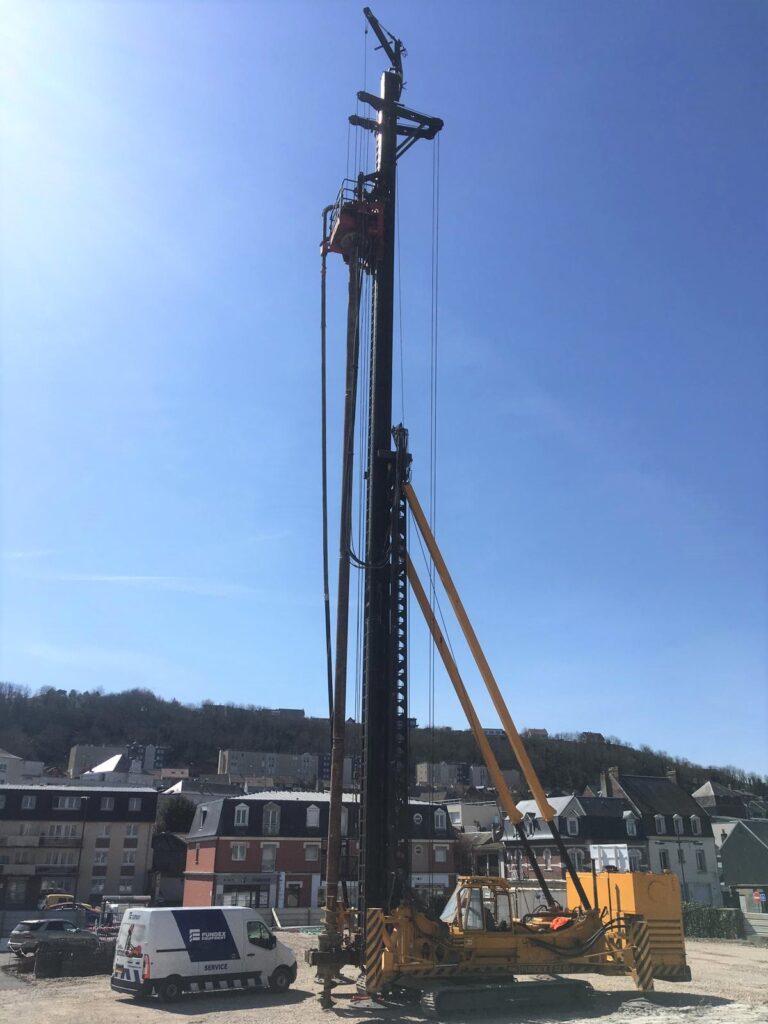

pre-owned FUNDEX F12SE
The used FUNDEX F12SE is a medium-sized model in the range of Fundex Equipment foundation rigs. This rig is recently completely overhauled and repainted in yellow.
Specifications of the USED FUNDEX F12SE
| Rig | FUNDEX F12SE |
|---|---|
| Serial number | 02.75.12SE |
| Year of manufacture | 2002 - completely overhauled in 2019 |
| Engine power | 137 kW Deutz 6 cylinder |
| Pull up winch | 10 ton = 80 ton pull-up force up to 15 mtr, 40 ton up to max. leader length |
| Pull down winch | 10 ton = 30 ton pull-down force |
| Leader movement winch | 10 ton |
| Top jib winch | 4 ton |
| Auxiliary winch | 5 ton (2x sheeved for pile handling) |
| Man lift winch | 0.9 ton |
| Standard leader length | 21 + 10 mtr |
| Max. leader length | 21 + 10 + 6 mtr (top jib) |
| Transport weight | 48 - 50 ton |
| Rotary head | FDE45 (11.65.52SE) |
| Year of manufacture | 2011 |
| Max. torque | 450 kNm |
| 1st gear | 450 kNm (7 rpm) |
| 2nd gear | 260 kNm (14 rpm) |
| Power pack | FPP20SNZ (06.96.20SNZ) |
| Engine power | 390 kW |
| Running hours | 3069 |
| Max. oil flow | 700 l/min |
| Weight | 7.500 kg |
ADVANTAGES OF THE USED FUNDEX F12SE
- the extension pieces of the leader are fed in from the bottom, which is beneficial in limited spaces
- high stability thanks to both front and rear supports as well as a low centre of gravity
- torque of 450 kNm along the entire leader length
