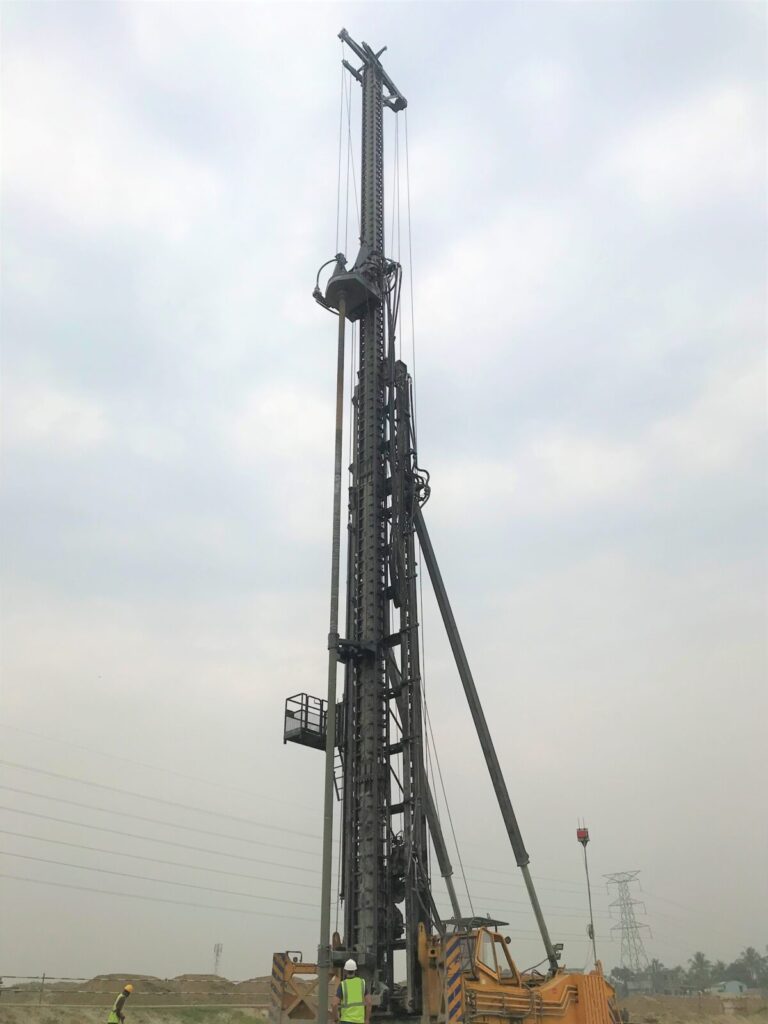

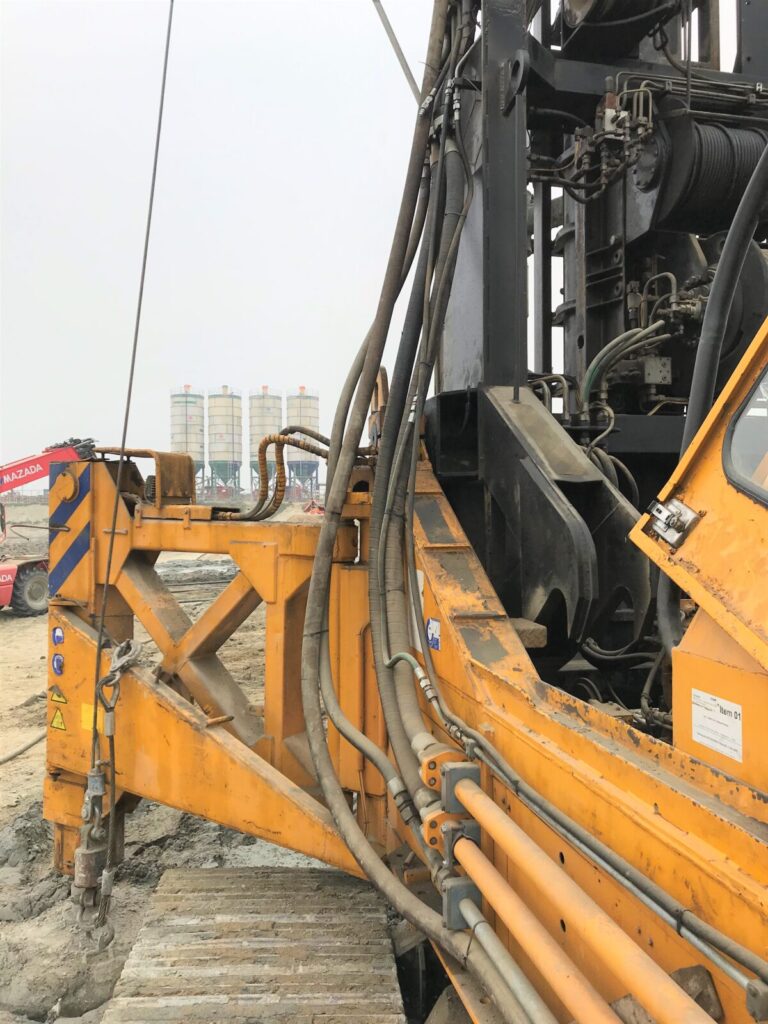

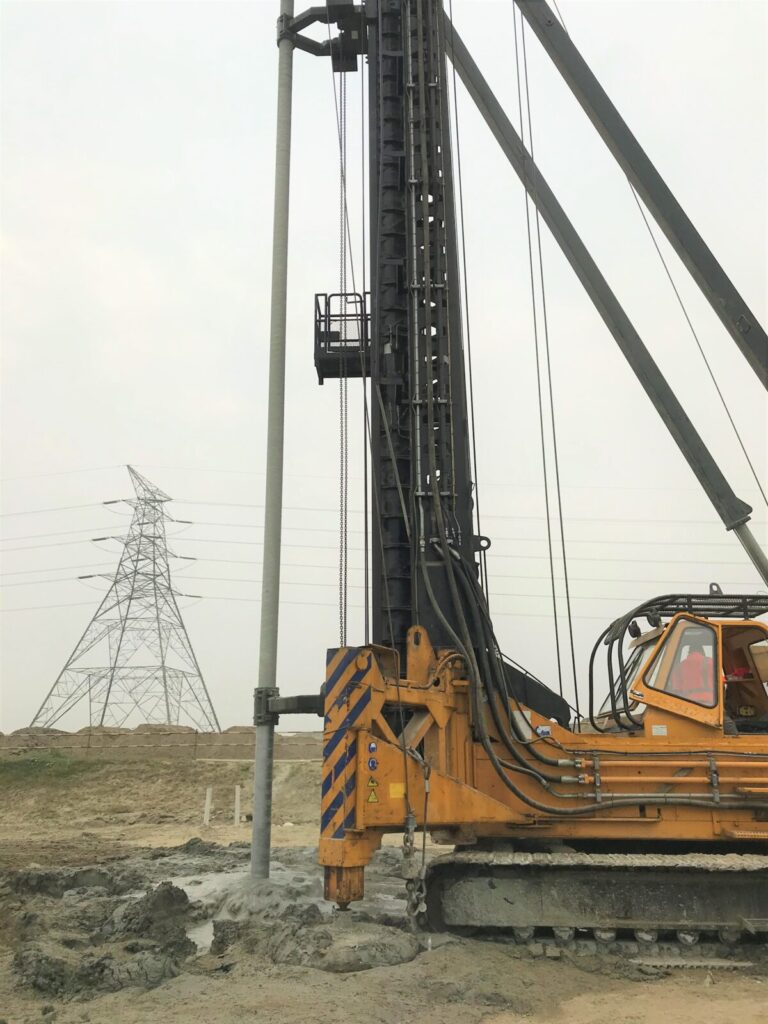

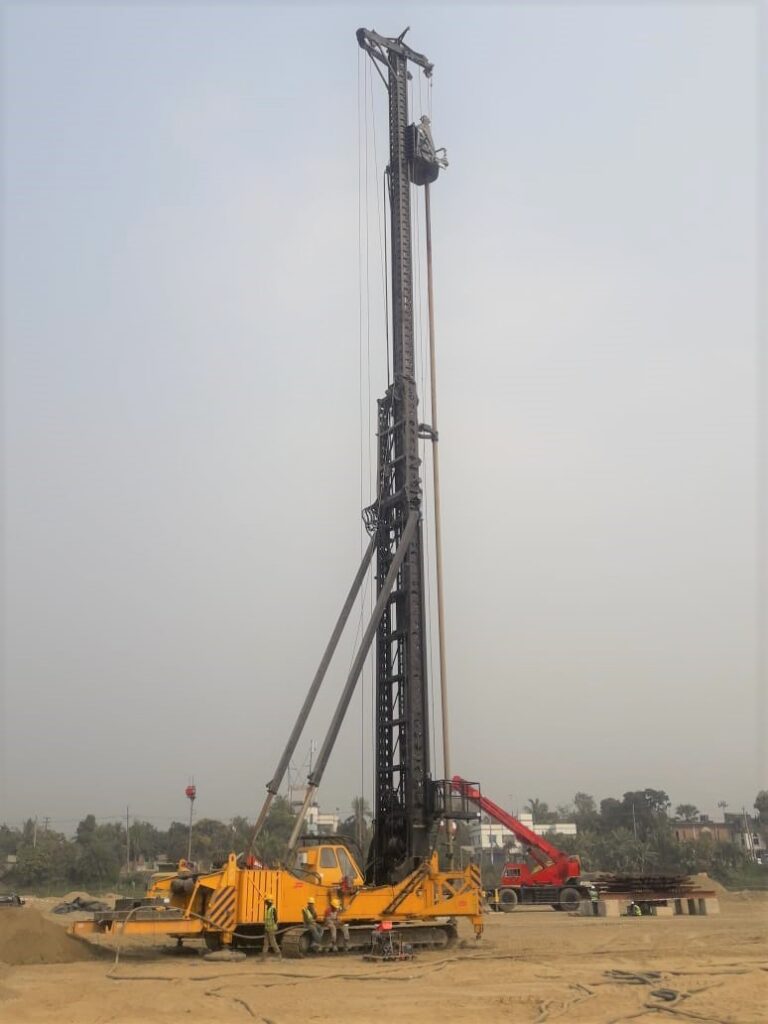

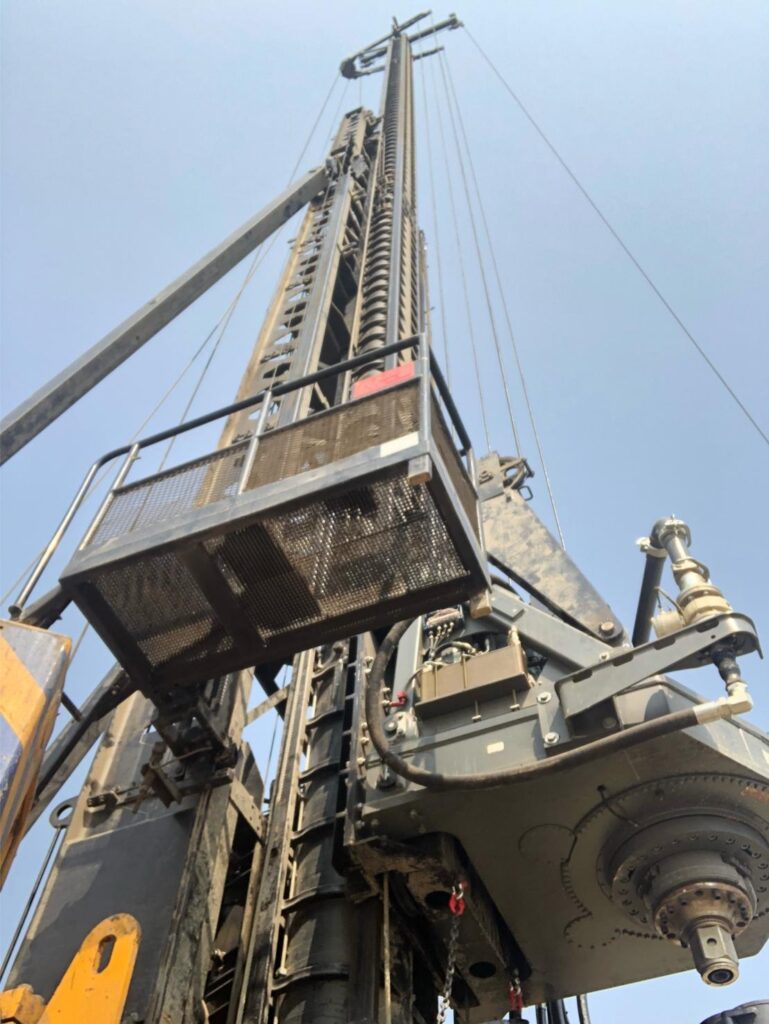

Specifications of the USED FUNDEX F16SE

Rig FUNDEX F16SE
Serial number 90.01.16
Year of manufacture 1990 - completely overhauled in 2015
Engine hours 1620 hours
Engine power 440 kW Deutz TCD2015V08
Pull up winch 10 ton = 80 ton pull-up force up to 20 mtr, 40 ton up to max. leader length
Pull down winch 6 ton = 24 ton pull-down force
Leader movement winch 10 ton
Top jib winch 3 ton

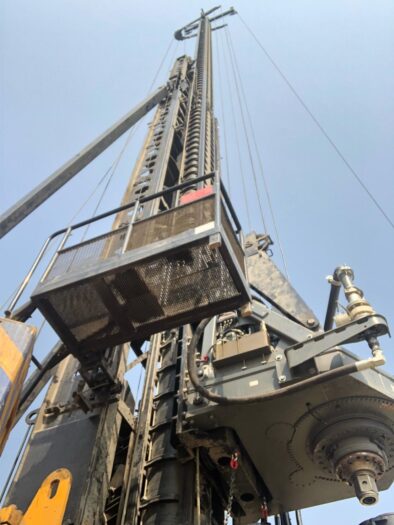

Man lift winch 0.9 ton

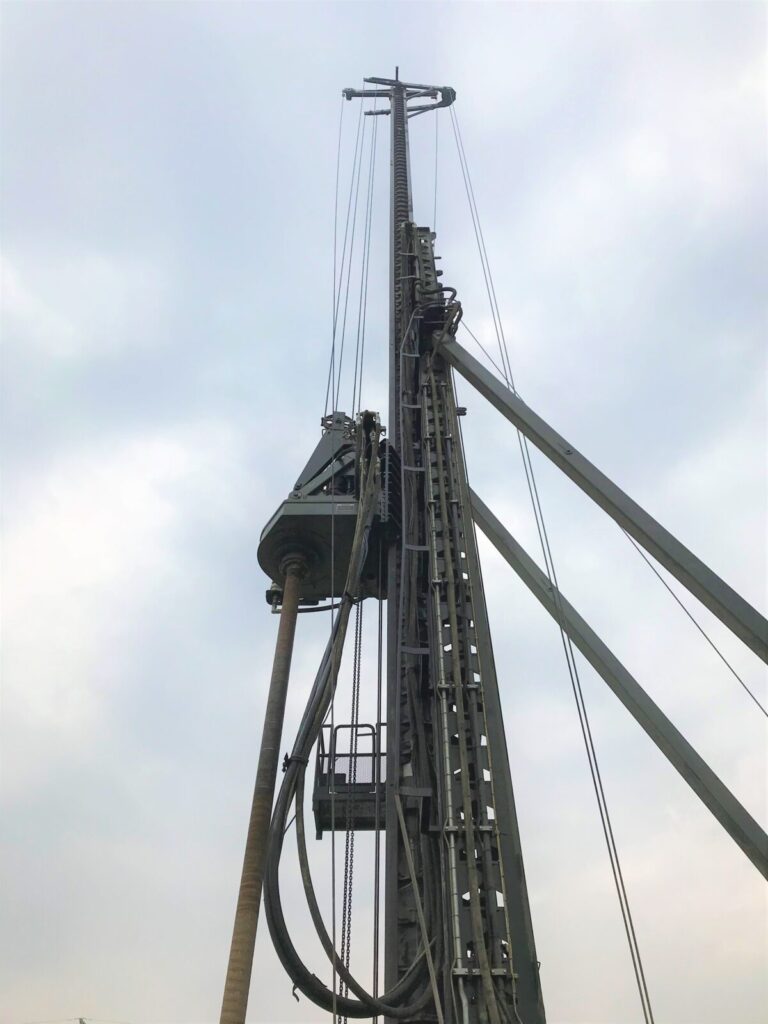

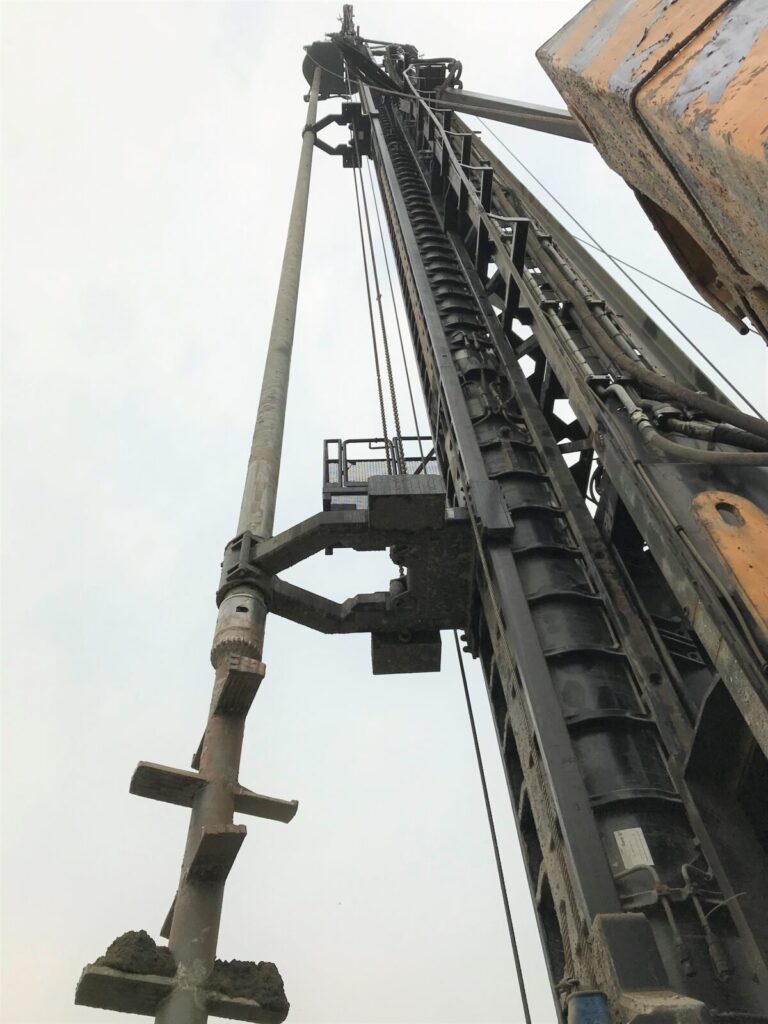

Standard leader length 24 + 5 mtr
Max. leader length 24 + 10 + 5
Counter weight 6 ton
Transport weight approx. 75 ton
Monitoring system Gamperl & Hatlapa (G&H)
Machine location Dhaka, Bangladesh

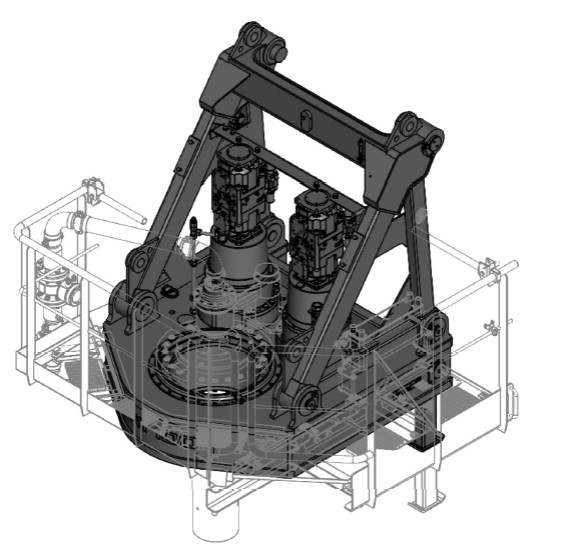

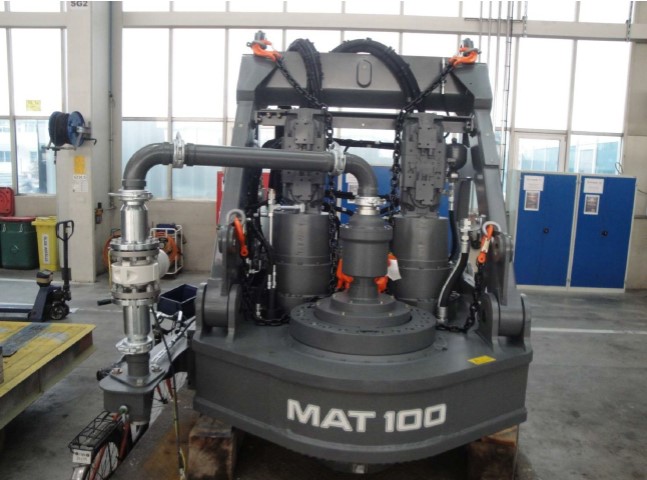

Rotary head
Type MAT120
Max. torque 100kNm
Max. speed up to 100 RPM
Rotary head location France
Machine is prepared for use in combination with MAT120 rotary head

ADVANTAGES OF THE USED FUNDEX F16SE

  • the extension pieces of the leader are fed in from the bottom, which is beneficial in limited spaces
  • high stability thanks to both front and rear supports as well as a low centre of gravity

applications suitable for the used FUNDEX F12SE
