The complete revision works were finished in 2023. The machine has a Stage V engine with only 800 running hours, new electric control system, new FDA and PPS system, new tracks, new painting and comes with an as good as new FDE50HS rotary head and FPP585 power pack (both delivered in 2023). The machine can be delivered at short notice.

Specifications of the USED FUNDEX F3500

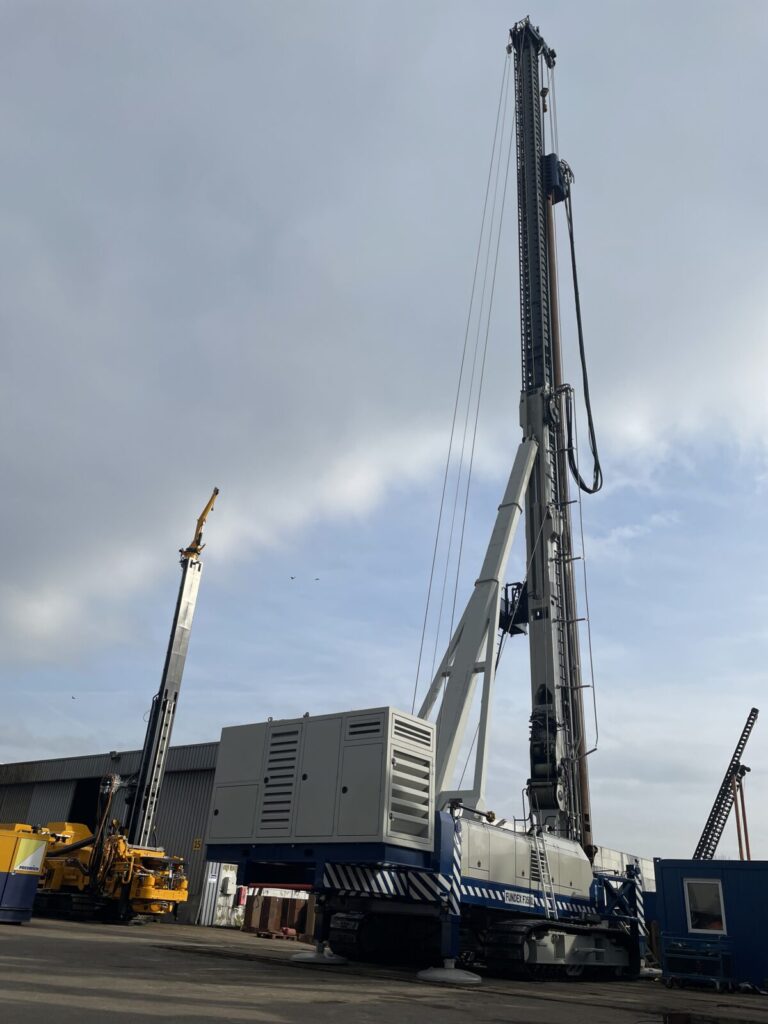

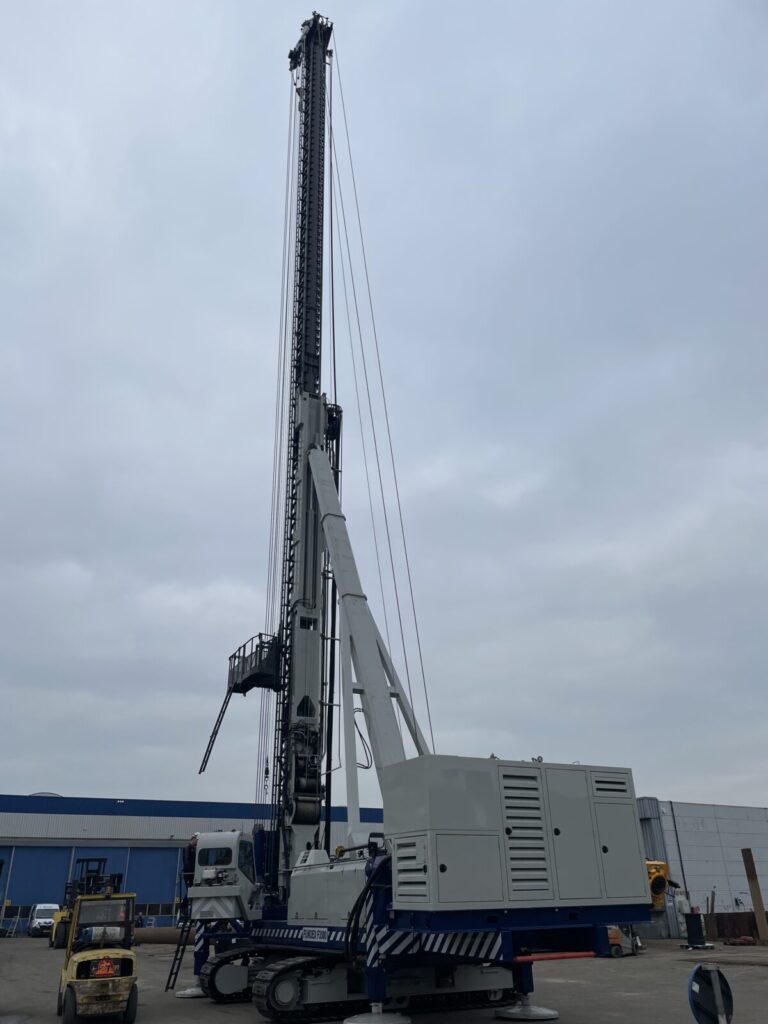

Rig FUNDEX F3500
Engine Deutz TCD 7.8 L6 Stage V
Engine power 220kW
Pull-up winch 100 ton till 35 mtr and 80 ton till 40 mtr
Pull-down winch 50 ton
Top jib winch 5 ton
Man lift winch 0.9 ton (along entire leader length)
Standard leader length 35 mtr
Max. leader length 40 mtr
Stroke sliding table 1.500 mm
Undercarriage extended tracks / 900mm flat track plates
Transport weight machine 74 / 79 ton

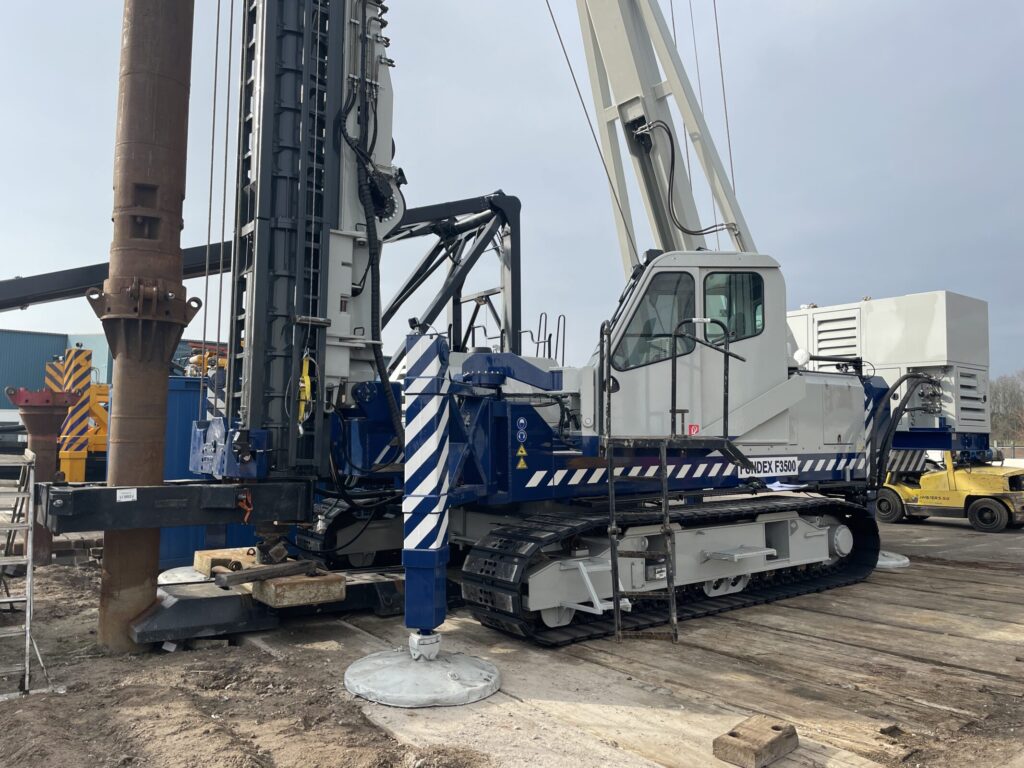

Rotary head FDE50HS (as good as new)
Max. torque 470kNm
Shifting 4 gears automatic/manual shifting

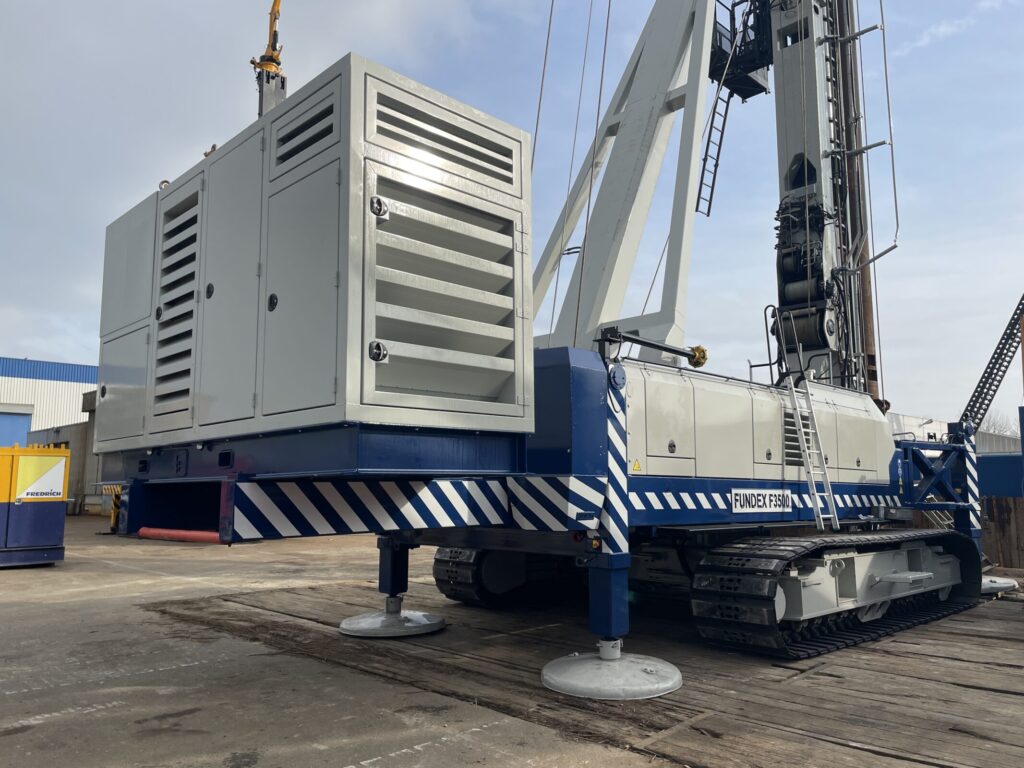

Power pack FPP585 (as good as new)
Engine Volvo TWD1683 VE / Stage V
Engine power 585kW
Options FDA, PPS and MYRIX


  • as good as new
  • the extension pieces of the leader are fed in from the bottom, which is beneficial in limited spaces
  • high stability thanks to both front and rear supports as well as a low centre of gravity
  • man lift along the entire leader length

applications suitable for the used FUNDEX F3500
