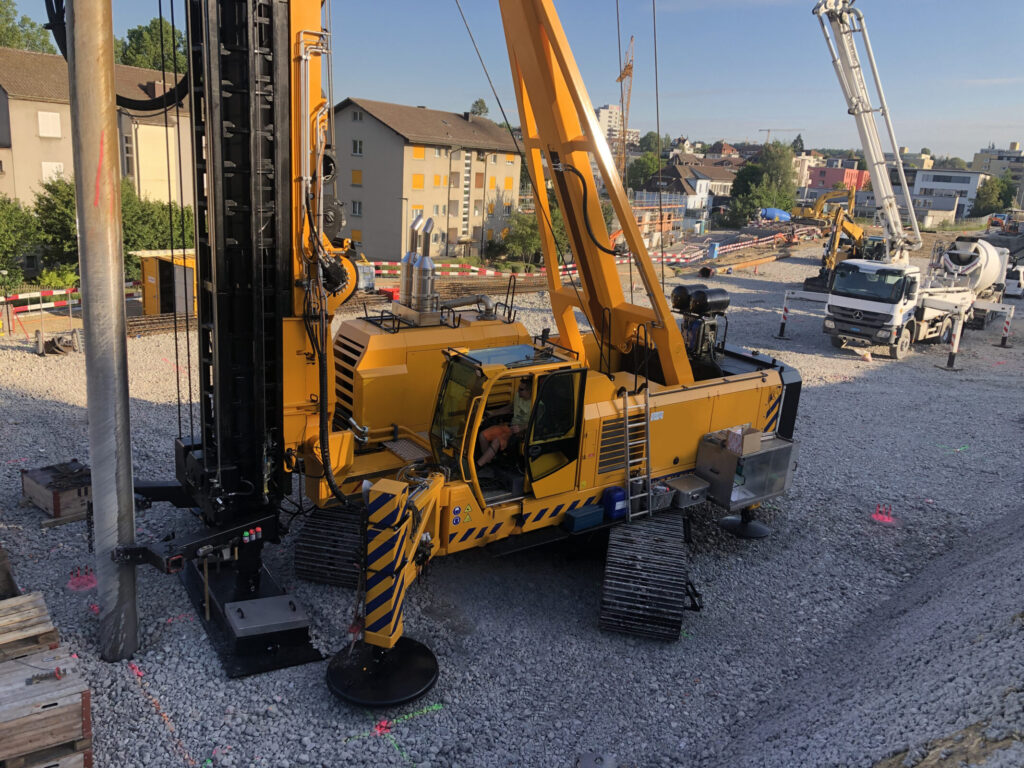

Specifications of the FUNDEX F2800

  • 31 mtr Max. leader length
  • 25.5 mtr Max. drilling depth
  • 1.200 mm Max. drilling diameter
  • 500 kNm Max. drilling torque
  • 95 T Max. pull-up force
  • 40 T Max. pull-down force
  • 405 kW Engine
  • 63 - 68 T Transport weight
Max. leader length 31 mtr
Max. drilling depth 25.5 mtr
Max. drilling diameter 1.200 mm
Max. drilling torque 500 kNm
Max. pull-up force 95 T
Max. pull-down force 40 T
Engine 405 kW
Transport weight 63 - 68 T


  • the extension pieces of the leader are fed in from the bottom, which is beneficial in limited spaces
  • high stability thanks to both front and rear supports as well as a low centre of gravity
  • 405 kW powerful Volvo engine
  • torque of 500 kNm along the entire leader length
  • man lift along the entire leader length
  • ergonomic cabin with modern control and monitoring system
