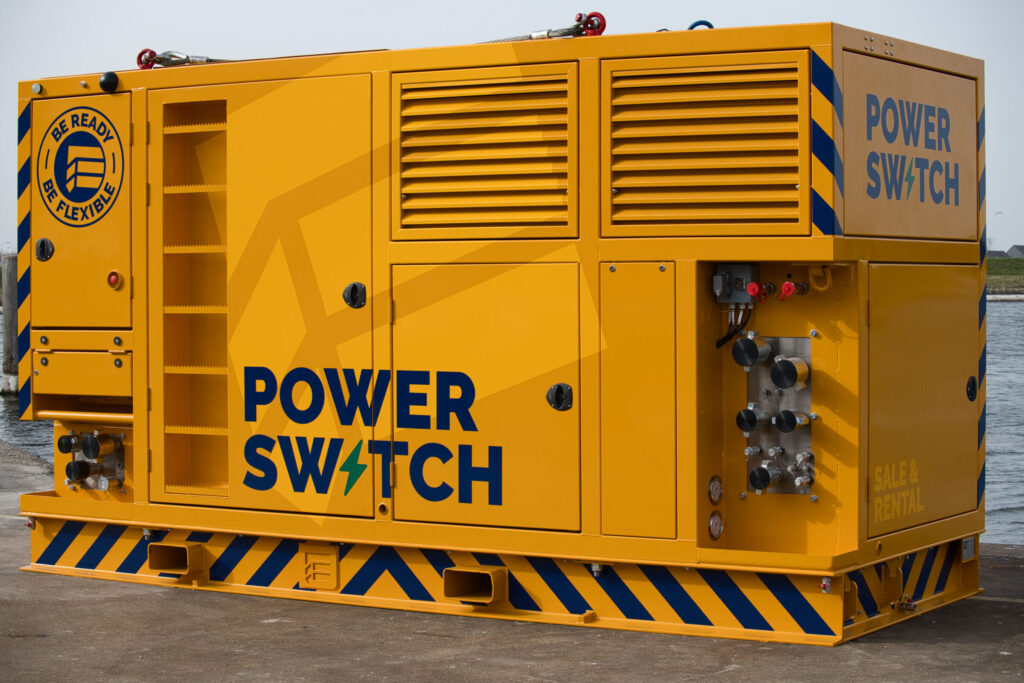

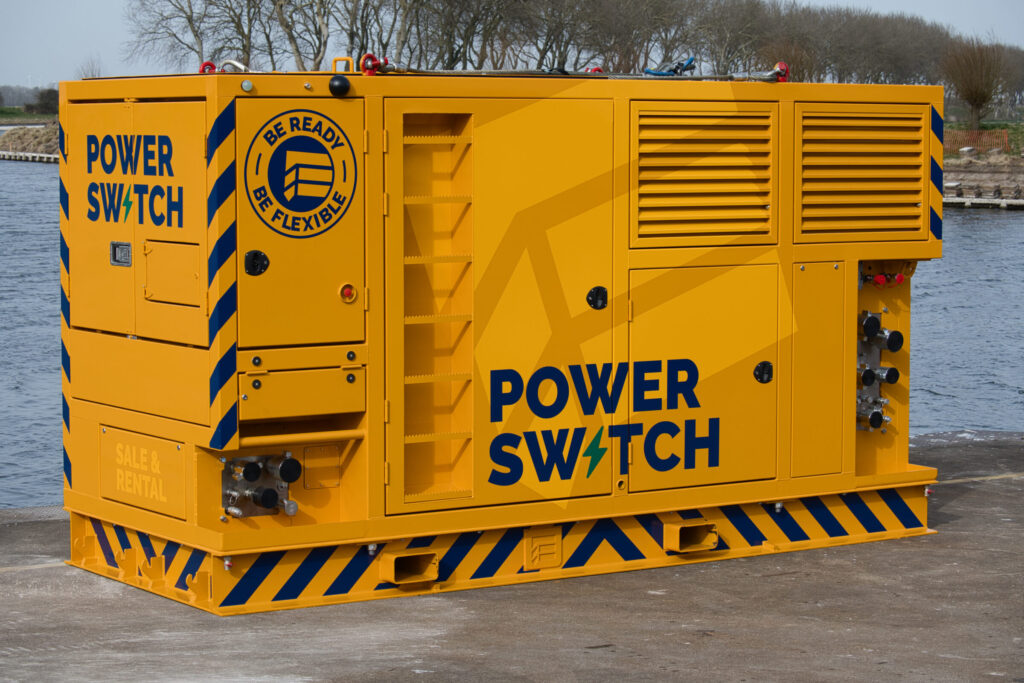

ELECTRIC POWER SWITCH FPS803

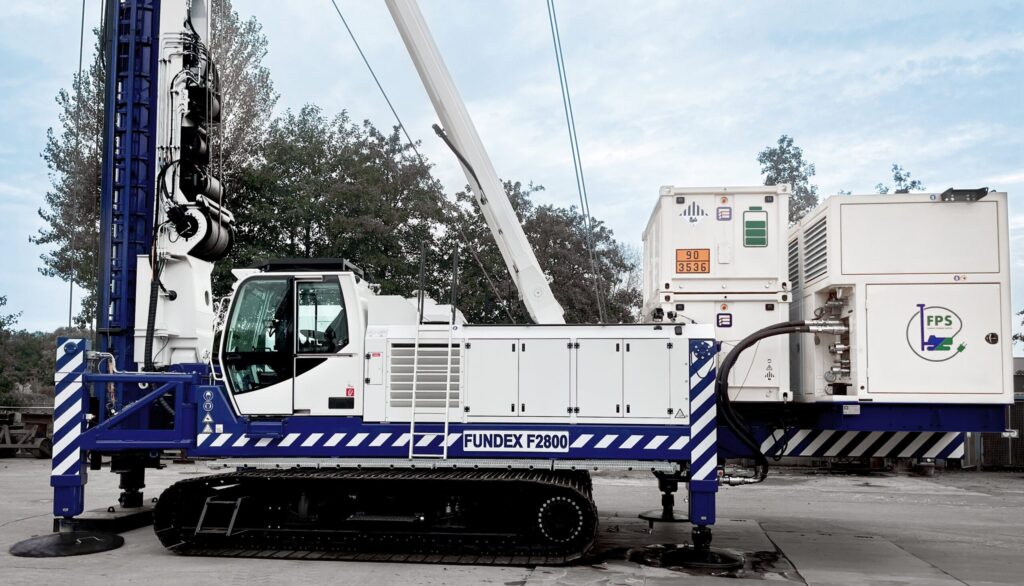

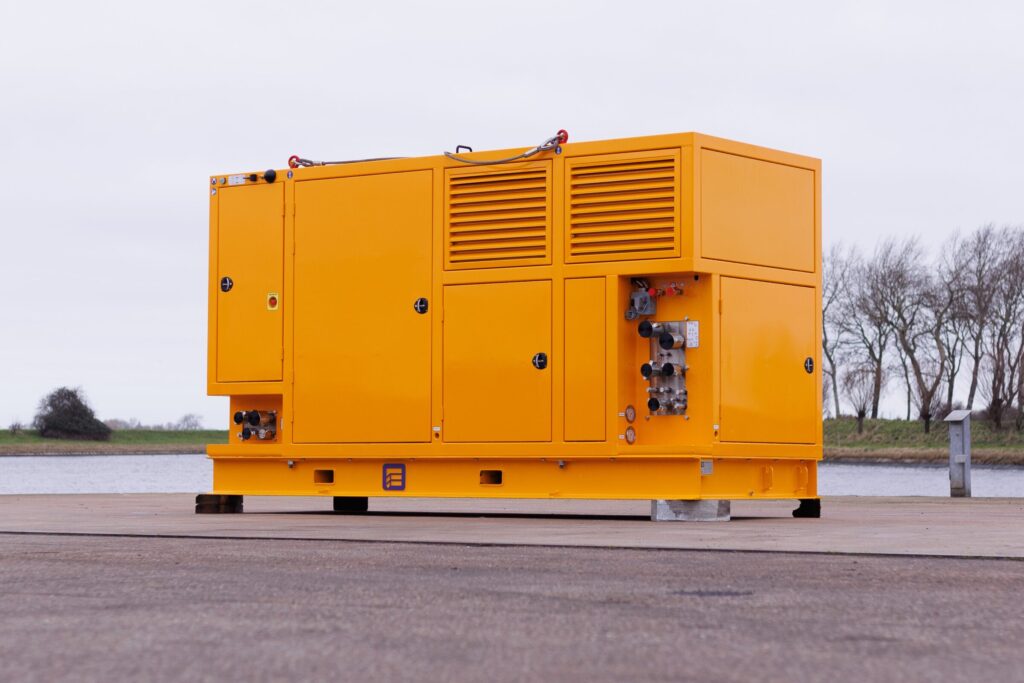

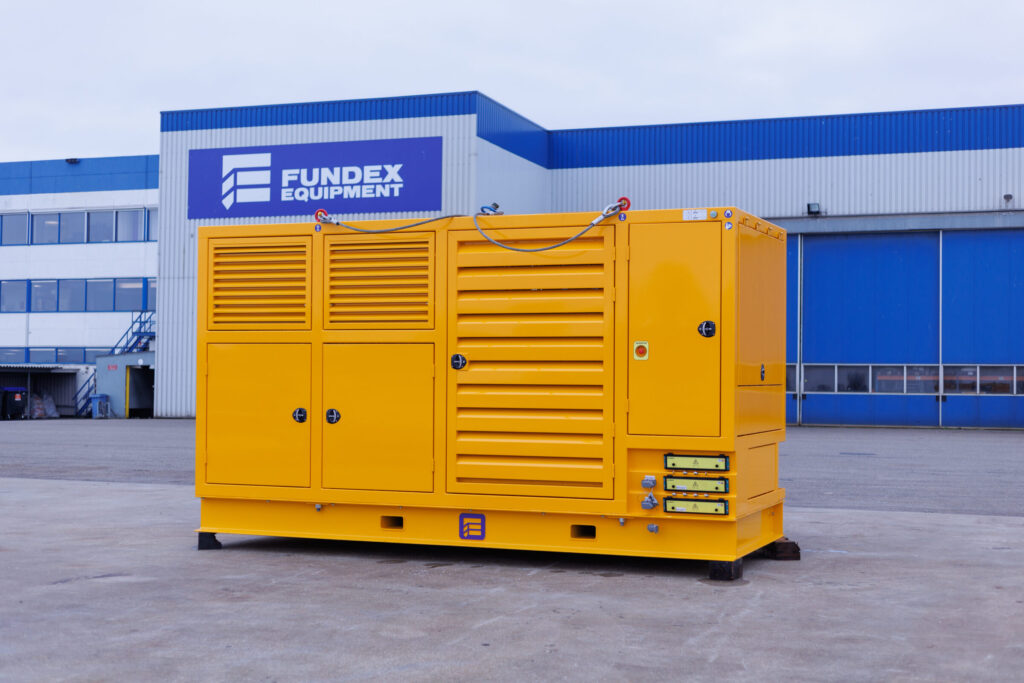

The FUNDEX FPS803 is an electric/hydraulic power pack allowing the user to switch between conventional drive and zero emission drive, for both the foundation machine and tool functions.

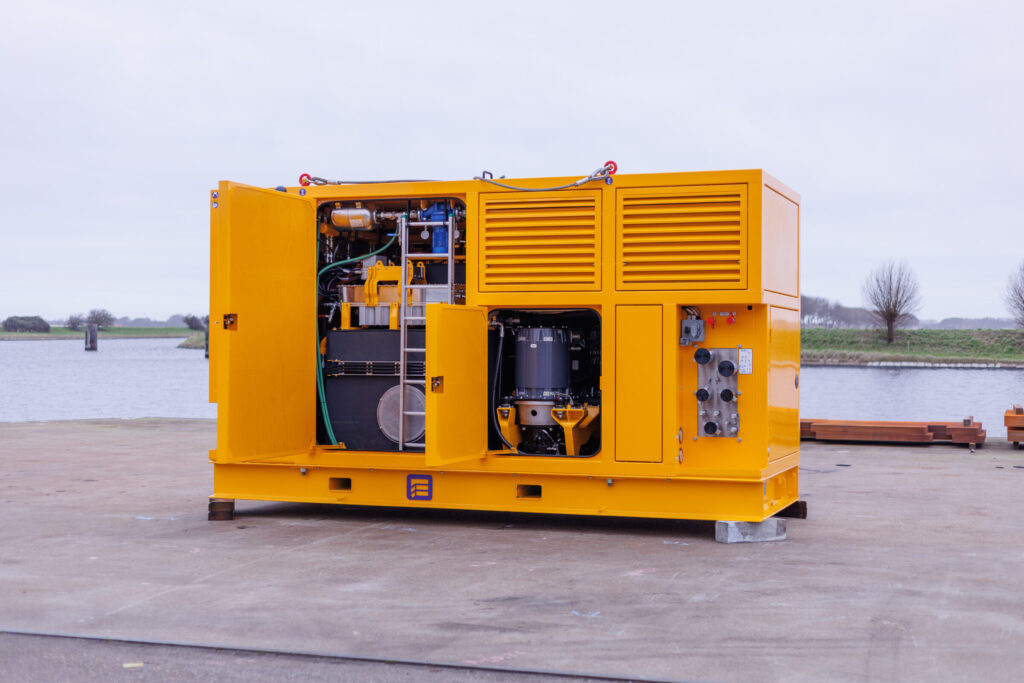

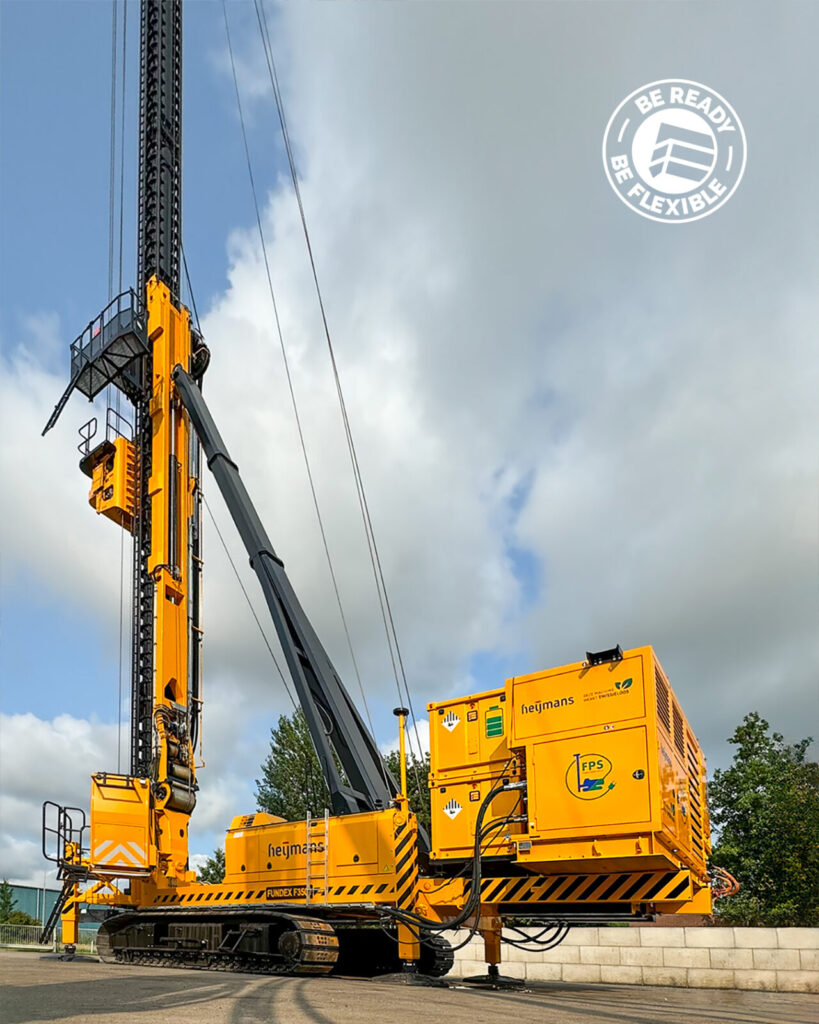

The 3x 200 kW permanent magnet electric motors can be powered by a battery pack(s), if required in combination with AC power socket, generator set or future energy sources. With a maximum total flow of 1250 l/min the FPS can power both the machine functions and tool functions completely emission-free.
| Weight | 11.000 kg |
|---|---|
| Dimensions (L x W x H) | 4.550 x 1.810 x 2.700 mm |
| Electric power input | |
| Max. input 1 - 500 VAC (240 A) | 200 kVA |
| Max. input 2 - 0 / 750 VDC (400 A) | 240 kW |
| Max. input 3 - 0 / 750 VDC (400 A) | 240 kW |
| Hydraulic power unit | 3x 200 kW |
| Capacity hydraulic oil tank | 2.000 liter |
| Main functions | |
| Max. flow main output 1 | 0 - 800 l/min |
| Max. flow main output 2 | 0 - 450 l/min |
| Auxiliary functions | |
| Max. flow aux. output 1 (max. 35 bar) | 35 l/min |
| Max. flow aux. output 2 (max. 40 bar) | 118 l/min |
| Control box (or via machine cabin) via Can-bus communication |
Additional information FOR THE FUNDEX FPS803
- zero emission electric/hydraulic power pack
- perfect solution for retrofit
- two separate hydraulic outputs
- very quiet during operation
- easy to adapt to a different application

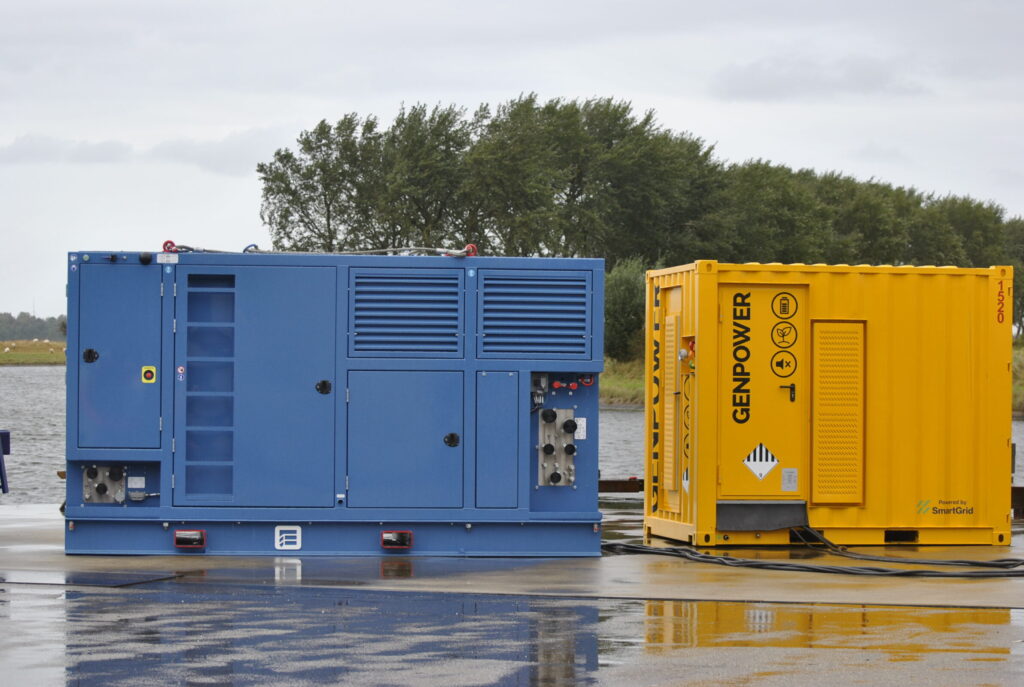

- can be powered by different power sources depending upon availability
- power control by energy management system
- Energy & Emission dashboard in MYRIX for fleet management
