Specifications of the FUNDEX F4800

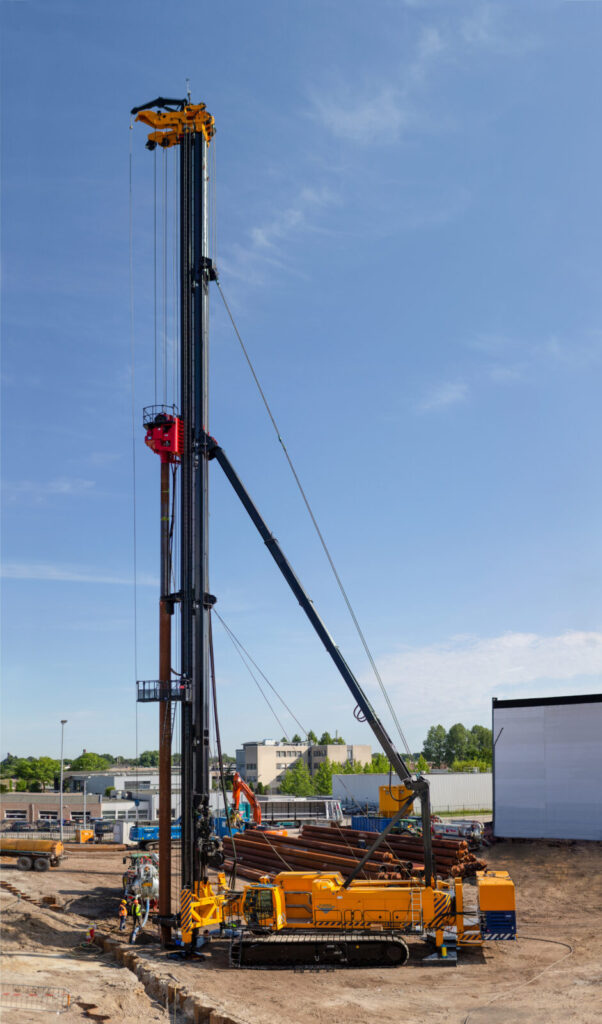

  • 48 mtr Max. leader length
  • 42.5 mtr Max. drilling depth
  • 1.500 mm Max. drilling diameter
  • 500 kNm Max. drilling torque
  • 150 T Max. pull-up force
  • 60 T Max. pull-down force
  • 585 kW Engine
  • 73 T Transport weight
Max. leader length 48 mtr
Max. drilling depth 42.5 mtr
Max. drilling diameter 1.500 mm
Max. drilling torque 500 kNm
Max. pull-up force 150 T
Max. pull-down force 60 T
Engine 585 kW
Transport weight 73 T


  • self-erecting
  • design with high stability thanks to a low centre of gravity

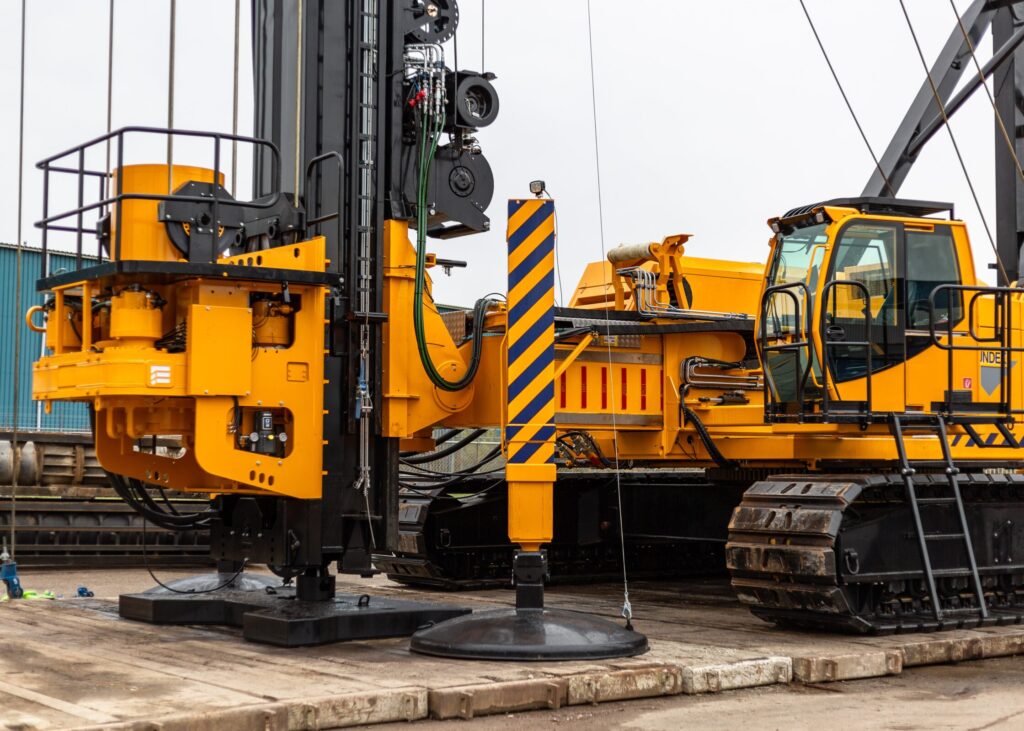

  • front and rear supports (optional without front supports)
  • 585 kW powerful Volvo engine Stage V (or optional with integrated 405kW rig and additional 585kW power pack engine)
  • torque of 500 kNm along the entire leader length
  • man lift along the entire leader length

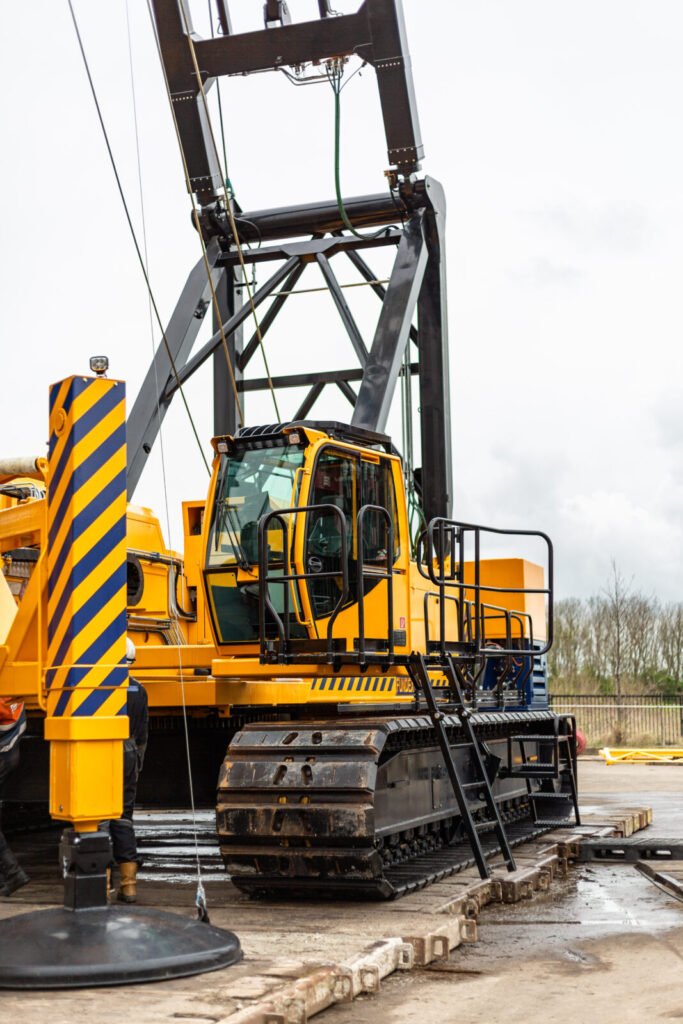

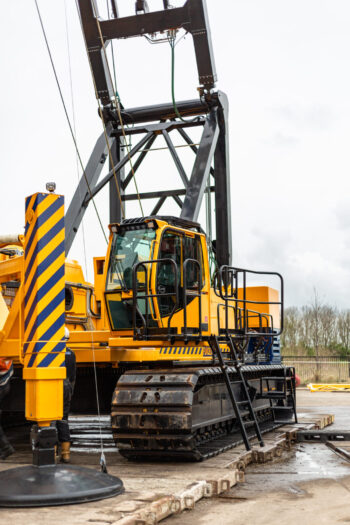

  • the ergonomic cabin with modern control and monitoring system can be swing out which provides an optimum view on the job
  • automatic pile positioning system via GPS
  • machine and pile data accessible via MYRIX portal

applications suitable for the FUNDEX F4800
