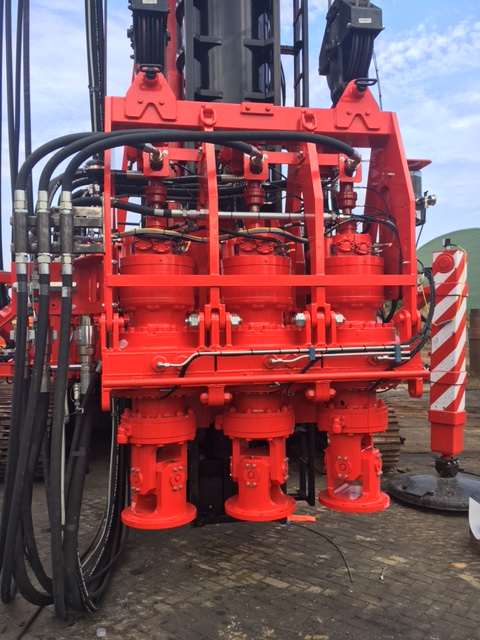

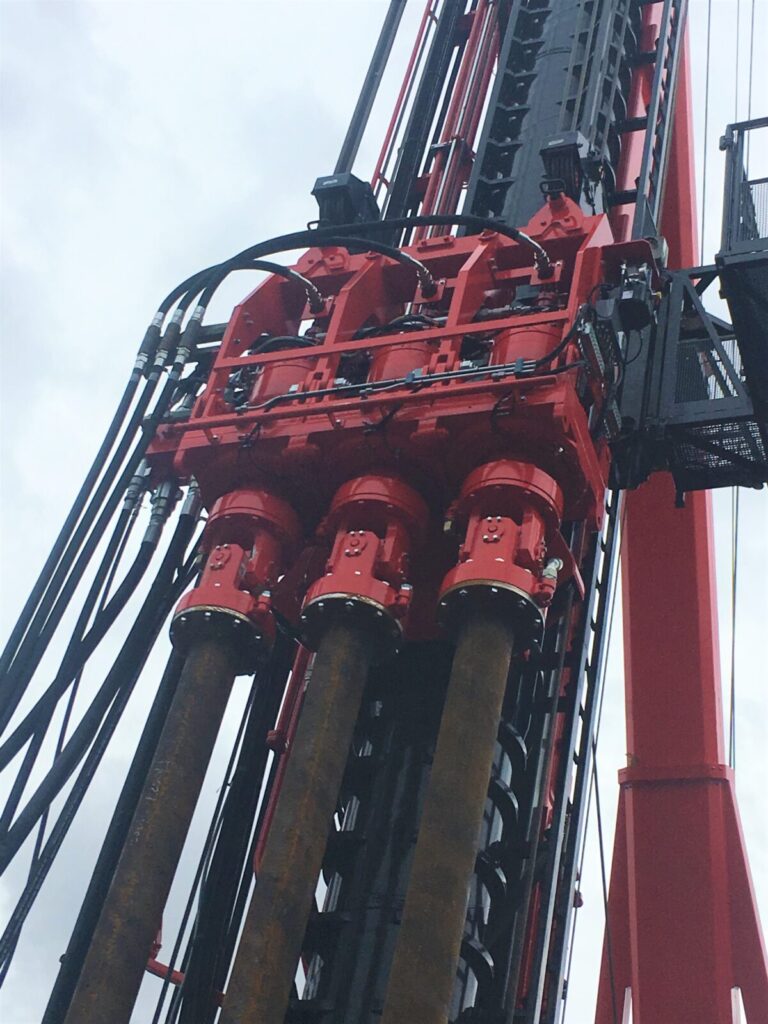

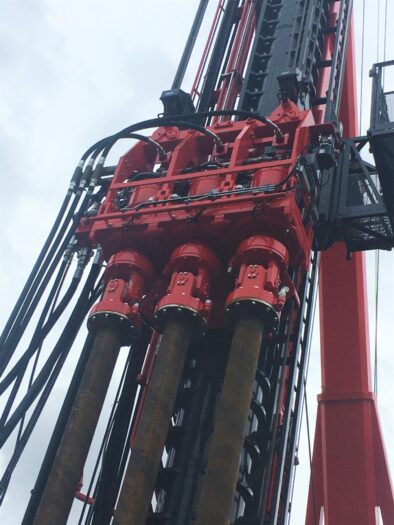

ROTARY HEAD FDE7TR
The FUNDEX FDE7TR is a combined triple rotary head for installing deep soil mixed secant walls. The independed rotary units can be combined as a double or quattro set-up as well. By using radial piston hydraulic motors and direct drive the rotary units are extremely reliable.
Specifications of the FUNDEX FDE7TR
| FDE7TR | 800 l/min |
|---|---|
| 1st gear with 800 l/min | 3x 73 kNm / 17 rpm |
| 2nd gear with 800 l/min | 3x 32 kNm / 34 rpm |
| FDE7TR | 1200 l/min |
| 1st gear with 1200 l/min | 3x 73 kNm / 27 rpm |
| 2nd gear with 1200 l/min | 3x 25 kNm / 55 rpm |
| Max. pull-up | 60 ton |
| Max. pull-down | 20 ton |
| Hollow shaft motor diameter | 36 mm |
| Weight | 8.000 kg |
Optional items for the FUNDEX FDE7TR
- can also be designed for double or quattro mixing
- can be upgraded to 1200 l/min
