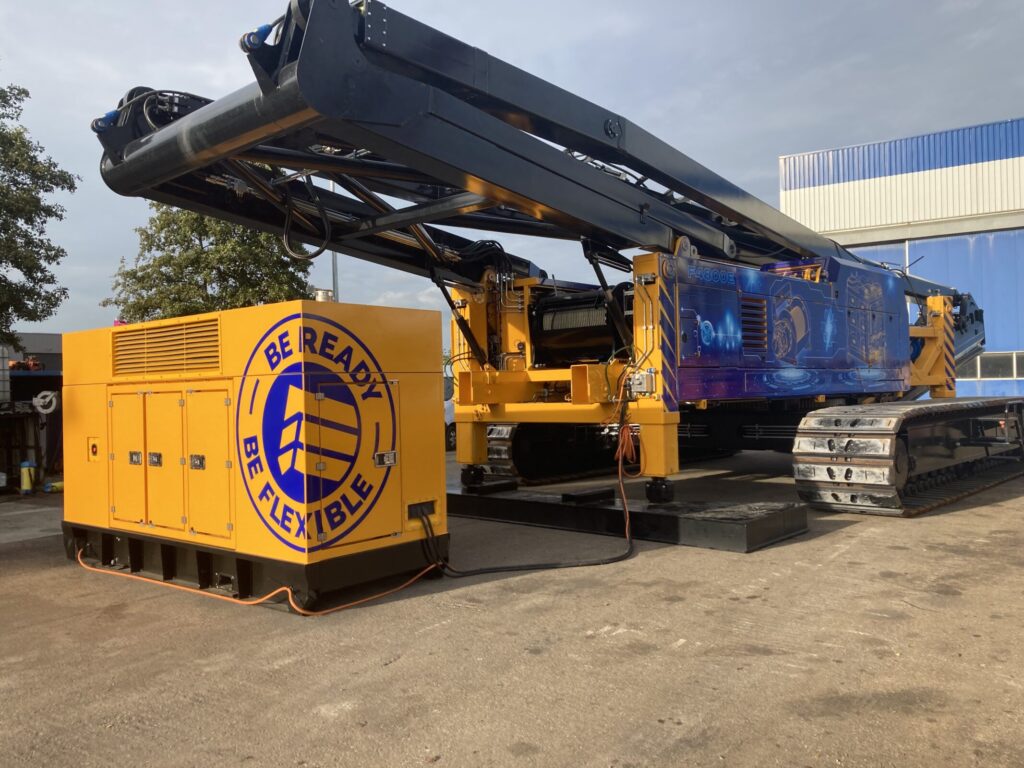

With the flexibility of being able to use conventional or alternative energy sources, the F4800E is delivered with a very efficient FUNDEX FG200 generator set which can be exchanged for alternative power sources subject to availability.
Together with the FUNDEX FG200 generator, efficiency gains of more than 20% can be achieved while retaining capacity.
The F4800E is specially designed for both drilling and pile driving techniques.

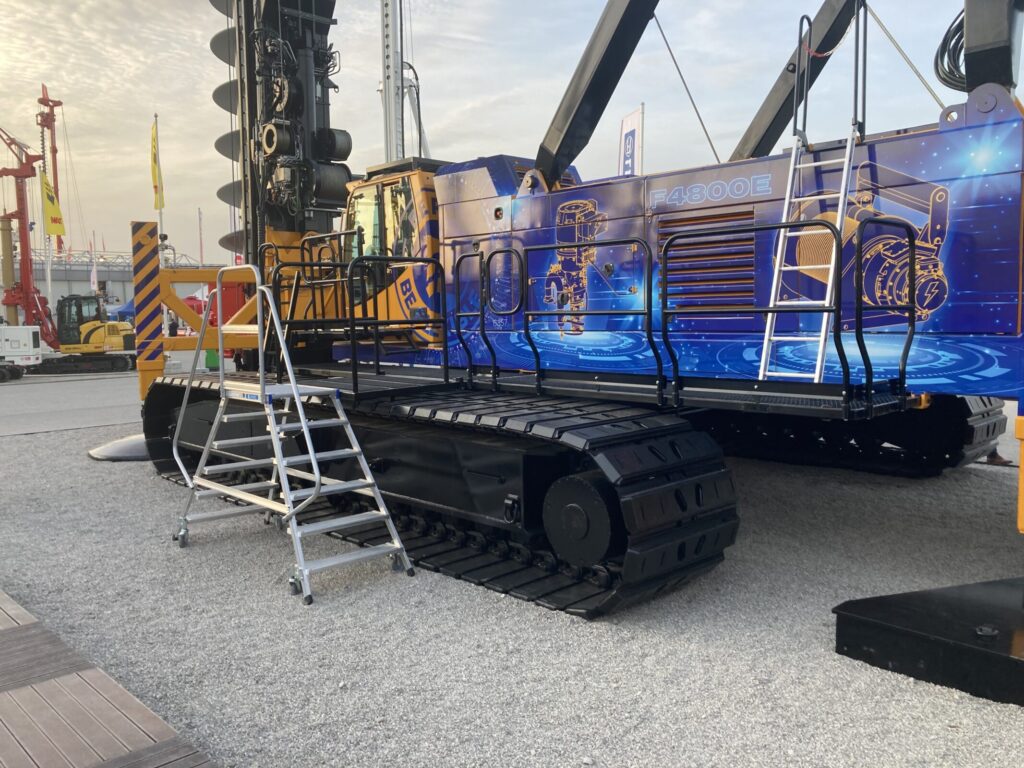

Specifications of the FUNDEX F4800E

  • 48 mtr Max. leader length
  • 42.5 mtr Max. drilling depth
  • 1.500 mm Max. drilling diameter
  • 500 kNm Max. drilling torque
  • 150 T Max. pull-up force
  • 60 T Max. pull-down force
  • 315 kW Engine

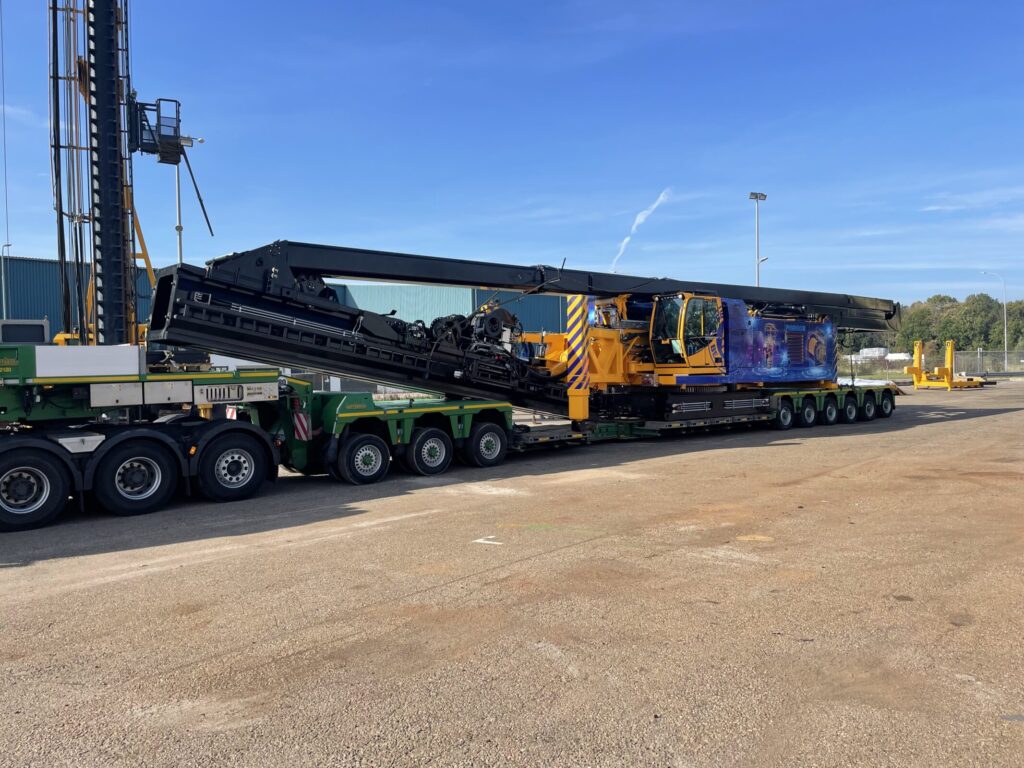

  • 90 T Transport weight
Max. leader length 48 mtr
Max. drilling depth 42.5 mtr
Max. drilling diameter 1.500 mm
Max. drilling torque 500 kNm
Max. pull-up force 150 T
Max. pull-down force 60 T
Engine 315 kW
Transport weight 90 T


  • zero-emission basic machine with flexibility for future energy sources and supplies
  • all-electric hydraulic power units in base machine;
  • very quiet during operation

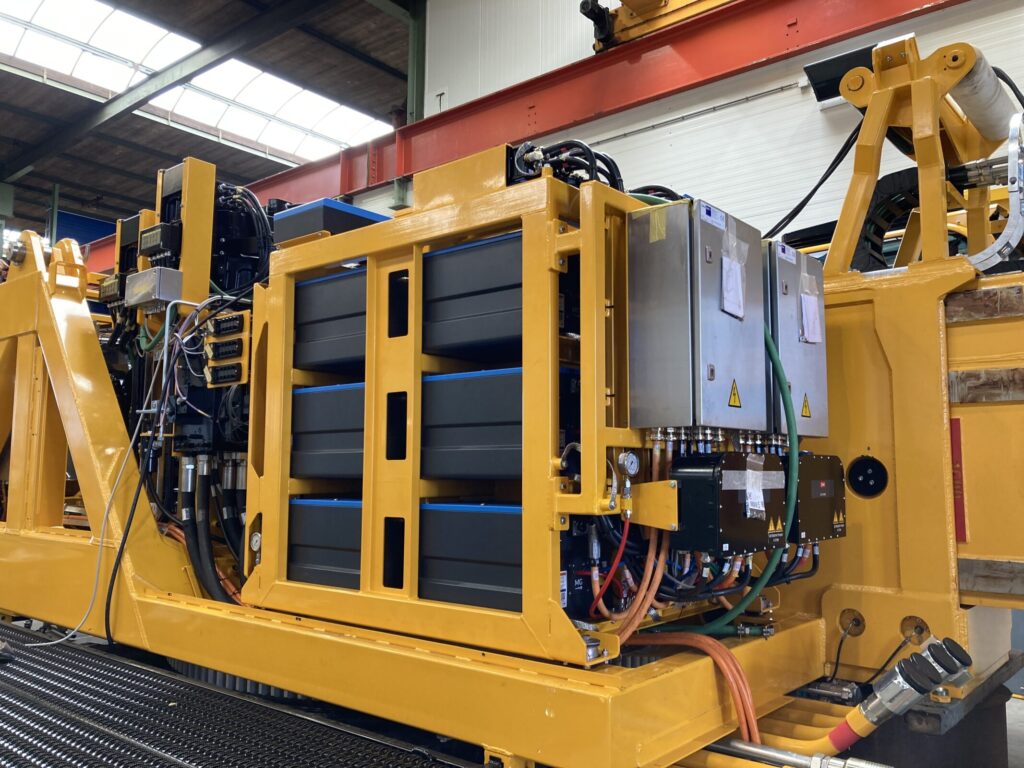

  • 150 kWh integrated battery pack for Peak Shaving
  • electric main winches for higher efficiency
  • improved hydraulic system for higher efficiency;
  • completely self-erecting with full leader length
  • high stability by means of front and rear supports
  • high drill torque of 500 kNm along the entire leader length
  • max. 150 ton pull-up force and 40 ton tool weight
  • Energy & Emission dashboard in MYRIX for fleet management

applications suitable for the FUNDEX F4800E
